STONKAM® 9 inch High Definition Digital LCD Color Monitor supports 4-channel high-definition camera inputs, allowing the driver to monitor the driving conditions around the vehicle while driving, reducing the possibility of accidental traffic accidents such as scratches. This monitor adopts a large-view and high-resolution TFT digital LCD with a clear picture, multiple languages and automatic brightness adjustment, bringing a clear and visualized vehicle monitoring experience to customers worldwide!
|
Audio output |
1W |
|
Loudspeaker |
One |
|
Power supply |
DC 10V-32V |
|
Power consumption |
approx. 8 W |
|
Outer dimension |
234mm (W) × 158mm (H) × 39.75mm (T) |
|
Active area |
196.608 (W) × 114.5(H) mm |
|
Dot pitch |
0.192(W) × 0.19025(H) mm |
|
Resolution |
1024 × 3(RGB) × 600 |
|
Contrast |
800:1 |
|
Brightness |
650cd/m2 |
|
Viewing angle |
U: 85° / D: 85°, R/L: 85° / 85° |
|
Operating temperature |
-20~+70ºC, RH90% |
|
Storage temperature |
-30~+80ºC, RH90% |
STONKAM® 9 inch High Definition
Digital LCD Color Monitor brings you the perfect
driving monitoring experience!
Real-time checking for the driving conditions around the vehicle is helpful for safe driving!
STONKAM® 9 inch High Definition Digital LCD Color Monitor supports 4 channels of high-definition camera inputs, which assists the driver to check the blind spots and locations that need to be monitored during the driving through the monitor, and to know the surroundings of the vehicle in real time, reducing the possibility of traffic accidents!

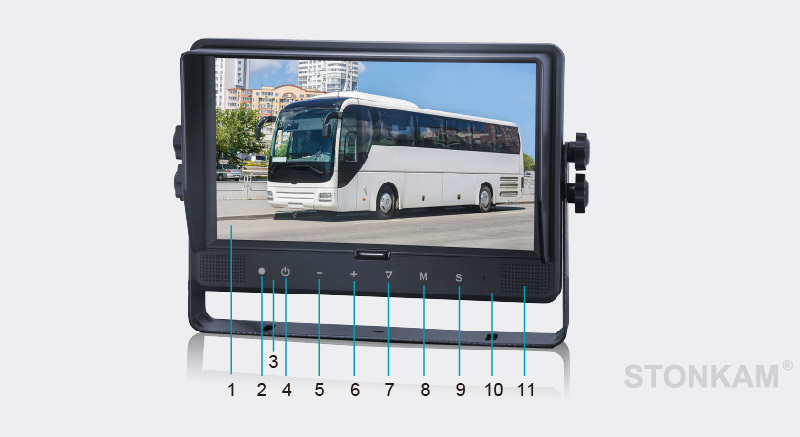

| 1 |
Digital Color LCD screen |
7 |
Setting selection down |
| 2 |
Power indicator |
8 |
Cam1/Cam2/Cam3/Cam4 Selector |
| 3 |
Remote control sensor |
9 |
Loudspeaker |
| 4 |
Power switch |
10 |
Light level sensor |
| 5 |
Brightness decrease |
11 |
Menu |
| 6 |
Brightness increase |
|
|
STONKAM® 9 inch High Definition Digital LCD Color Monitor is easy to install and operate and is available for a wide range of applications.
 |
 |
 |
 |
 |
|
AV and power supply adapter cable |
IR remote control |
Center mount bracket |
U-support bracket |
Sun shield |
 |
|
|
|
|
|
Angle adjustment screws |
|
|
|
|
