STONKAM® 1080P Wireless Forklift Camera is easy to install. It offers clear front view, helping you to avoid blind spots and secure safety. Click to see more STONKAM® wireless camera products.
• Wireless Transmission Range - Up to 120m
• Magnetic wireless forklift safety camera, easy to install
• IP69K Waterproof with metal shell, durable and fit for forklift to work outside
• Can be conveniently powered by an external battery
• Mirror / normal image switchable
• Anti-vibration: ISO 16750-3 (Max. 17.3G)
• Working temperature: -20ºC ~ +70ºC
|
Image Device |
1/2.9" CMOS |
|
Effective Pixels |
1920 (H) x 1080 (V) |
|
S/N Ratio |
38 |
|
White Balance |
Auto |
|
BLC |
Auto |
|
Dynamic Range |
81dB |
|
Operation Frequency |
2403MHz-2478MHz |
|
Transmission Distance (Barrier Free) |
120m（Max） |
|
Receiving Sensitivity |
-78dBm |
|
Video Code |
H.264 |
| Transmission Power |
FCC：≤26dBm CE：≤20dBm
MIC：≤10dBm |
|
Modulation |
FHSS |
|
Delay |
130ms |
|
RF Bit Rate |
12Mbps |
|
Operating Temperature |
–20℃ ~ 70℃, RH95%MAX. |
|
Storage Temperature |
–30℃ ~ 80℃, RH95%MAX. |
|
Minimum Illumination |
0Lux/0.1Lux |
|
Power Supply |
DC10-32V |
|
Power Consumption |
Day：1.8W-2.5W Night：3.6W-4.3W |
|
Night Vision Distance |
NO IR LED |
|
Waterproof Rating |
IP69K |
| Audio | No |
|
Viewing Angle |
62° |
| Heater | No |
| IR-Cut | No |
| Image mode | Mirror/Normal image switchable |
Why to install forklift camera systems?
How to avoid accidents in warehousing operations caused by limited visibility?
How to improve the working efficiency of the forklifts with safety being guaranteed?
How to prevent secondary damage by the collapsed goods or shelves resulted from the vision error of forklifts?
......
STONKAM® 1080P Forklift Camera System can help you solve your worries！
Can’t be easier——How to install STONKAM® Wireless Forklift Camera System?

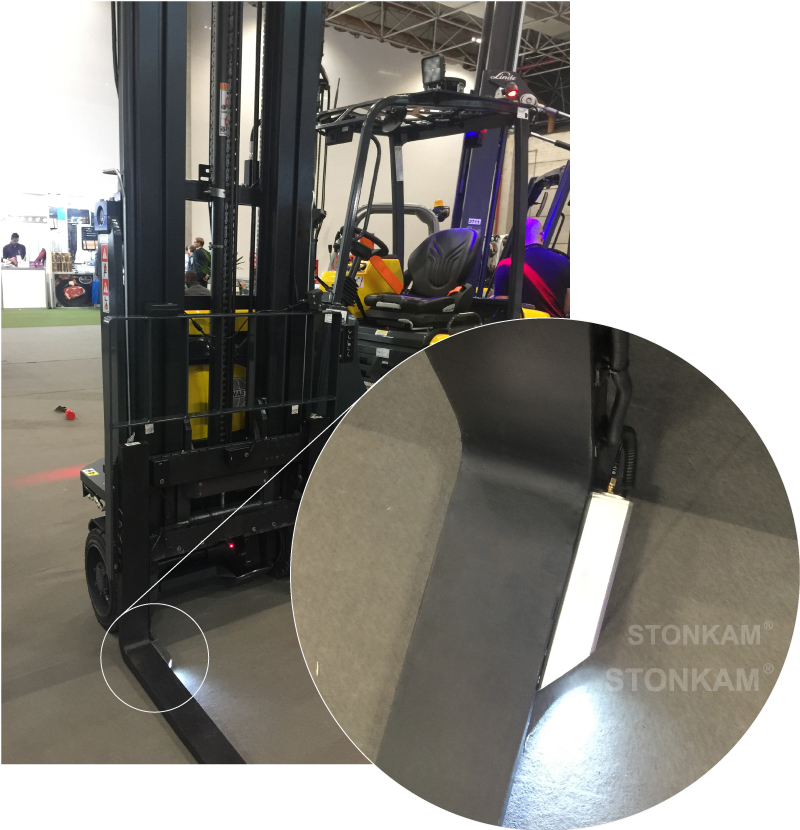

Mount the forklift camera onto the fork arm and the monitor onto the cab, which offers the operators with clear front view.
Enable position line setting on monitor to accurately indicate the target position, which improves work efficiency
Convenient and stable 2.4GHz digital wireless transmission, distance up to 120m
Magnetic housing for wire-free installation
Just simply place the magnetic forklift camera on the iron arm, and the camera can firmly attach to the forklift.
Save complex installation procedures, cutting installation costs
The wireless forklift camera can be powered by an external battery, with no need for additional power wiring.
IP69K Waterproof wireless camera, suitable for outdoor use
