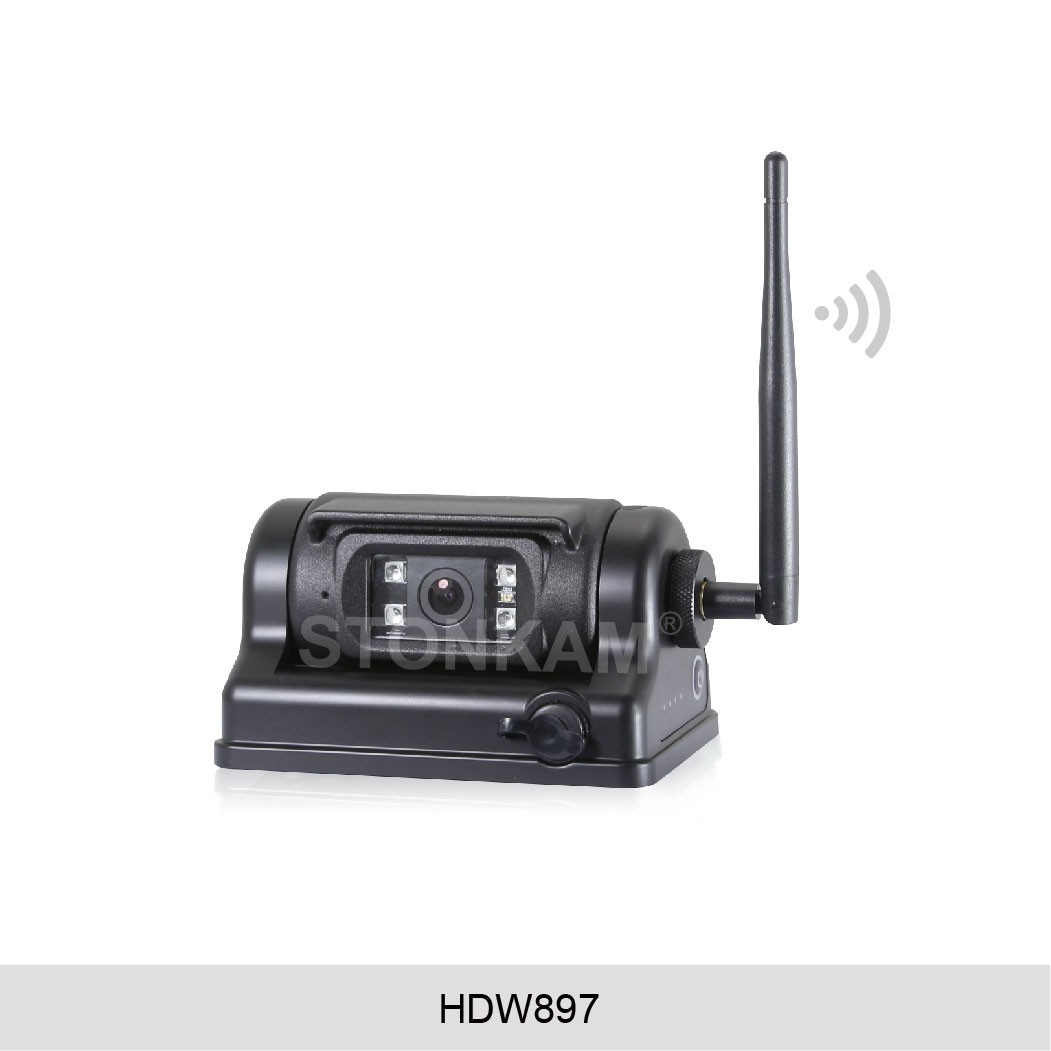

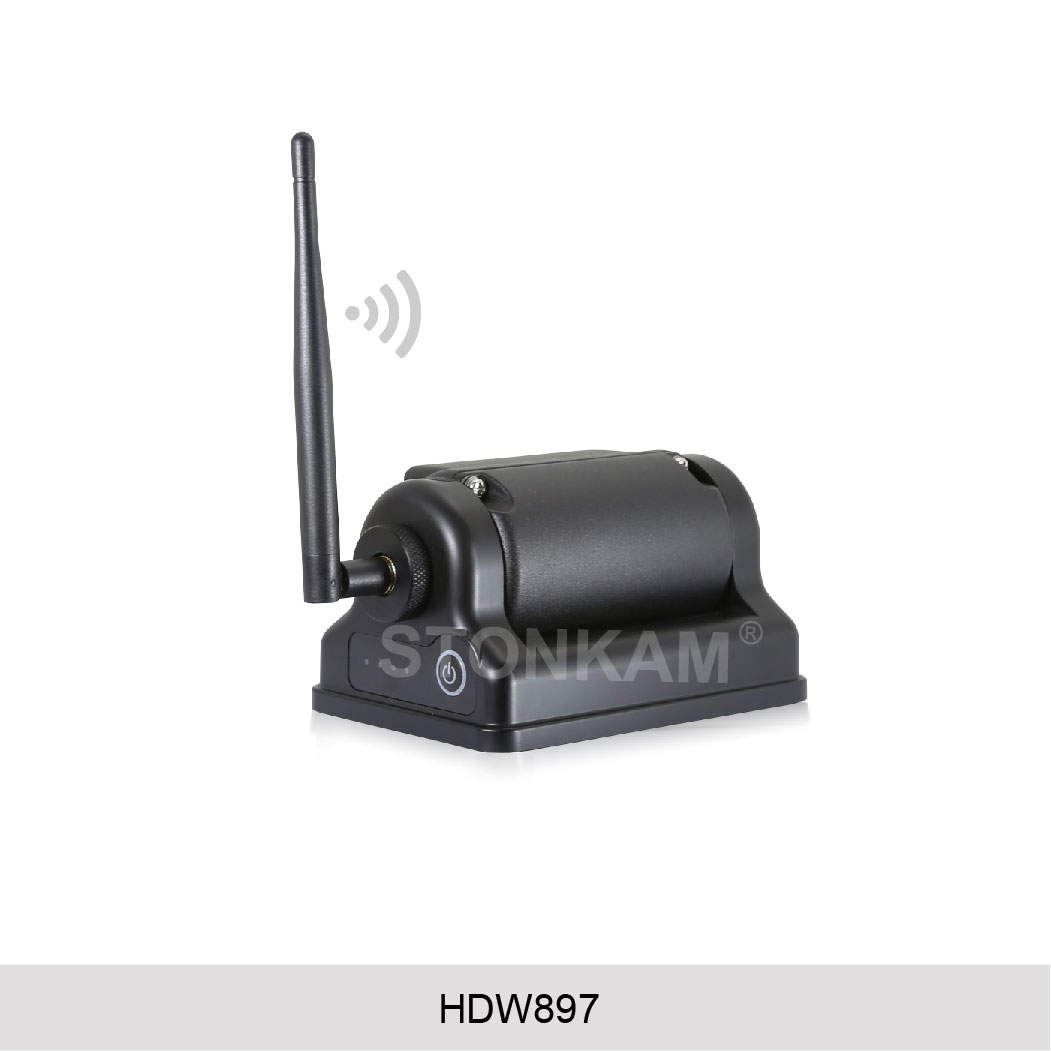

1080P vehicle wireless camera with built-in rechargeable battery and magnet base
(Model:HDW897)
1080P vehicle wireless camera with built-in rechargeable battery and magnet base
Features

STONKAM 1080P HD 2.4GHz vehicle wireless monitoring camera integrates battery and camera. It can be powered by battery, and the camera base has a strong magnet, which is very easy to install. In addition, the waterproof and dust-proof rating of the vehicle wireless camera is approved by IP69K certification. At the same time, it has such functions as short-circuit , temperature and lithium battery protection, high reliability and wide applicability. It can be widely used in trucks, cranes, excavators, agricultural vehicles and other vehicles.


  • Integrated battery and camera, strong magnetic base and easy installation
  • Waterproof/Dustproof rating: IP69K, with shock resistance of 17.3G
  • The TI charging and discharging scheme with the functions of short-circuit , current and temperature protection, power detection and high reliability
  • It has the lithium battery protection function. When charging, it has overcharge protection to limit the voltage of lithium battery to exceed 4.2V; when the voltage of lithium battery is lower than 2.9v, the output current of lithium battery is only 4.5ua
  • It supports USB charging and discharging while charging
  • LED power indication and abnormal status alarming
  • The camera enters the low power consumption mode automatically after 20 seconds of switching off the monitor, and the output current of the battery is less than 3 Ma, and the output current of the battery is less than 0.3 Ma after long pressing the switch button
  • Lens angle: 70°/100°/130°
  • With IR-cut, it can completely solve the problem of color deviation of green plants under sunlight

rear view camera

Specification
Battery Capacity
3.6V/6400mAh
Charging Voltage
5V-12V
Charging Time
5V/8H,12V/3H
Charging Current
5V/1.5A(MAX),12V/1.5A(MAX)
Discharging Time
12H(daytime 5Hnight
Charging Temperature
0~+40℃
Discharging Temperature
-20~+60℃
Storage Temperature
-20~+60℃
Waterproof Rating
IP69K
Size
116 x 80 x 66(mm
Weight
670g
Sensor
1/2.9” CMOS SENSOR
Effective Pixels
1920 x 1080 pixels
AGC
Auto
S/N Ratio
38dB
White Balance
Auto
BLC
Auto
Operation Frequency
2403-2478MHZ
Transmission Distance (barrier free)
300m(20dBm)
Receiving sensitivity -78dBm
Video Decode
H.264
Transmission power 10dBm/20dBm
Spread SPECTRUM
FHSS
Delay
170ms
RF Bit Rate
12Mbps
Minimum Illumination
0Lux
Night Vision Distance
8-10m
Audio Optional
Viewing Angle
130°
IR cut function Optional




Why do you need to install the STONKAM 1080P HD 2.4GHz vehicle wireless and rechargeable monitoring camera?


High installation expenses ?
Complicated wiring?
Inconvenient camera power supply?

……


Vehicle wireless monitoring system




STONKAM 1080P HD Wireless Camera helps you solve all the problems!




With magnetic base, no drilling, no wiring, easy installation!
With magnet base, STONKAM HD Wireless Camera can be installed  without drilling.

Car wireless reversing camera



With rechargeable battery, it has up to 12 hours battery life, and has ultra-low standby power consumption
The rechargeable camera with battery has up to 12 hours battery life in the daytime, and can automatically stand by and wake up the monitor. When the standby power consumption is less than 0.01W, and it can save power without manual shutdown when not in use.

rear view camera

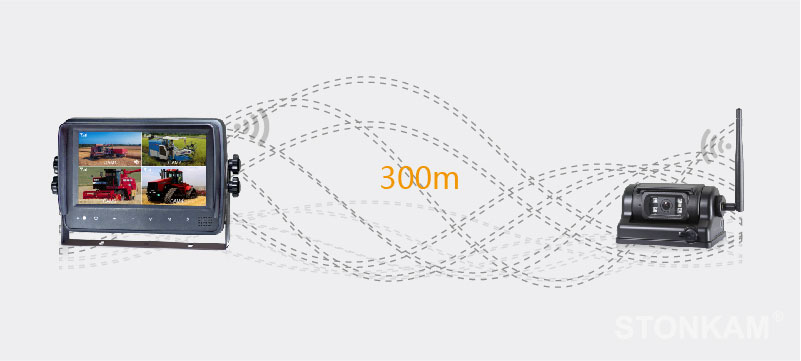

Transmission distance can reach 300 meters(barriers free)



With IR-CUT function, night vision distance up to 10 meters
STONKAM 1080P Vehicle Wireless Rechargeable Camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

Wireless rear view camera



Waterproof and dust-proof rating is approved by IP69K certification, with great durance in harsh environment!

IP69K Vehicle Wireless Camera

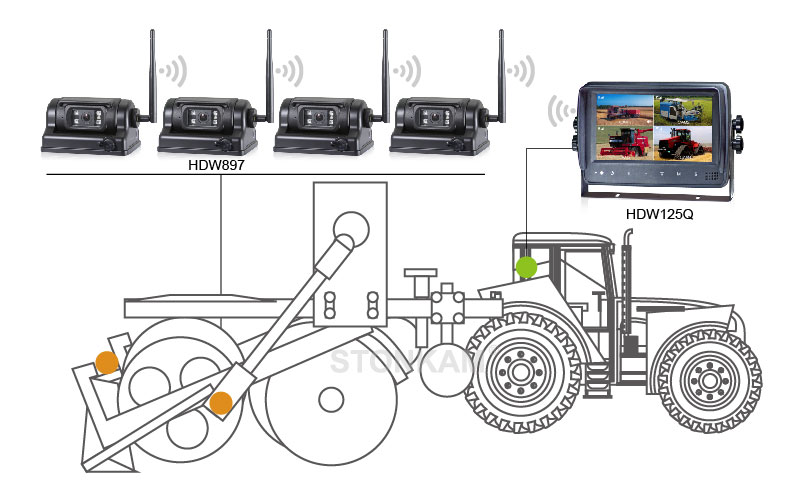

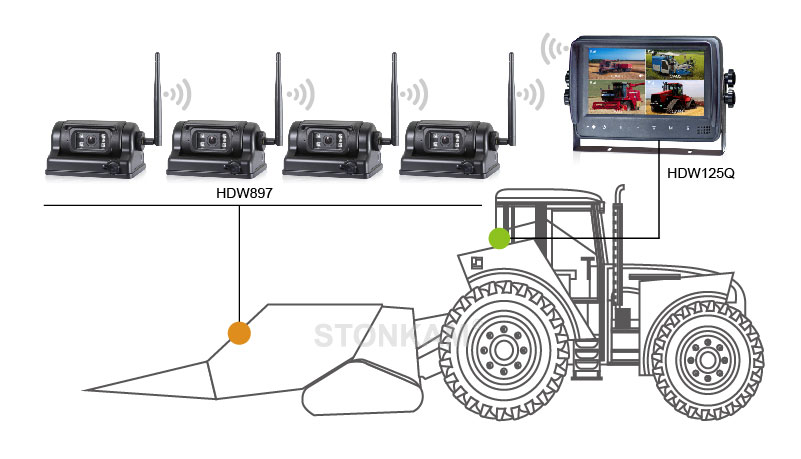

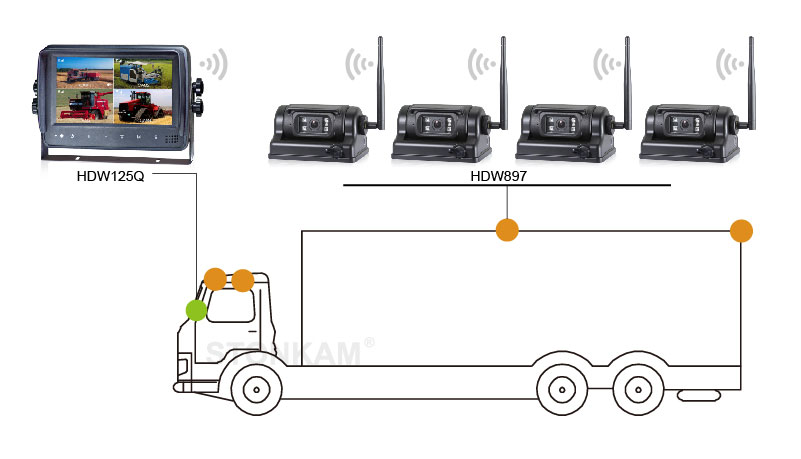

Applications

STONKAM 1080P HD Vehicle Wireless Monitoring Camera can be used in various vehicles through simple installation without wiring, and it can be matched with the vehicle HD wireless monitor to form a perfect vehicle monitoring system solution.

rear view camera



rear view camera

rear view camera
