Products > Accessory > MDVR Fireproof Data Storage Device

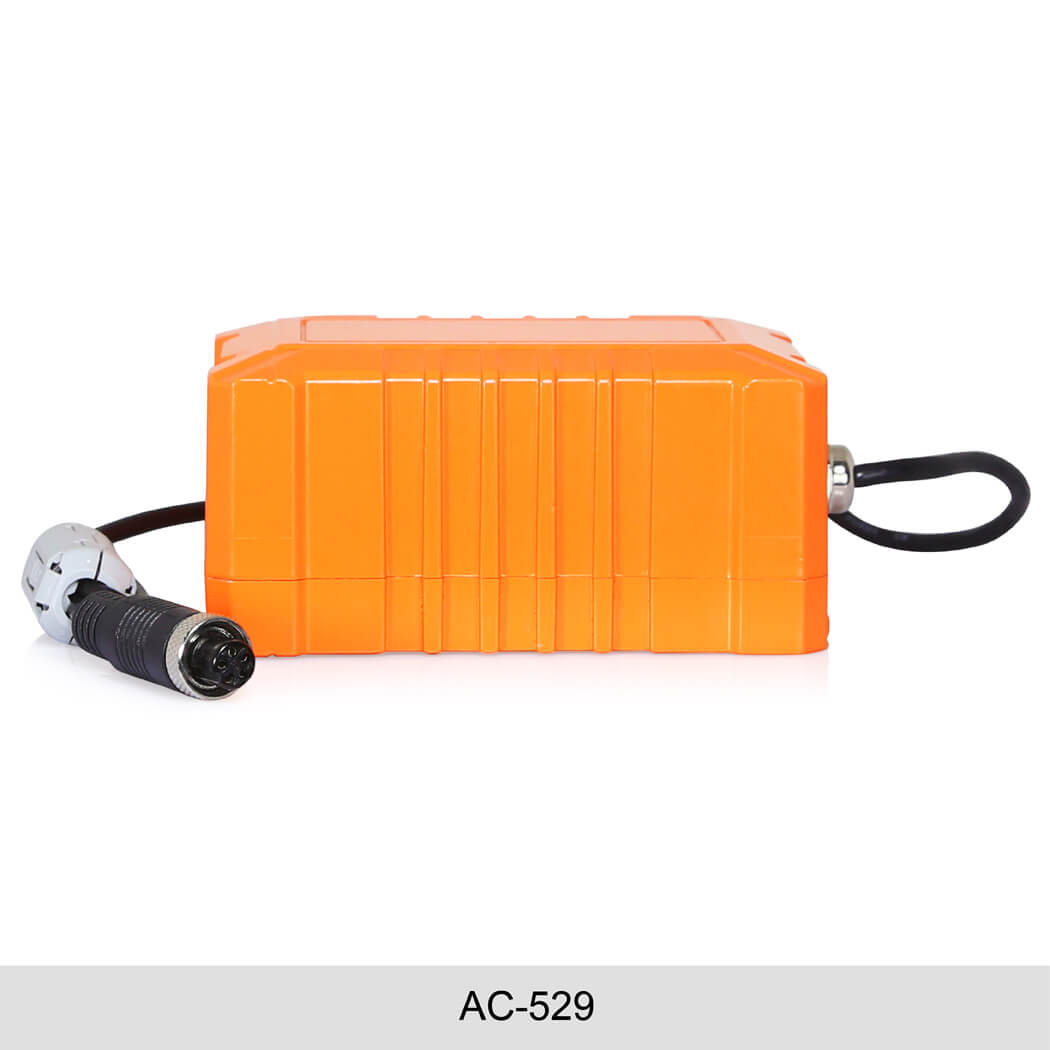

MDVR Fireproof Data Storage Device

(Model:AC529)

Features

STONKAM® Fireproof Data Storage Device is specially designed for mobile digital video recorders. It can protect the MDVR recording data in car crash, fire, explosion, water immersion, etc.

A reinforced refractory data memory device based on the standard of the flight black box (EUROCAE ED-155), disaster tolerance conditions include: fire, impact, extrusion, electromagnetic storm, rapid cooling, deep water immersion, etc.
Resistant to 1100℃ high temperature fire
Survivable at 100m deep water for 240 hours
High-speed USB2.0 interface
Fit for air connector M12-5PIN
All solid-state high reliability eMMC storage core
Can be connected to computers, DVR, EDR, T-BOX, etc.
The protected data are retrievable after the accidents.

Specification

Power	input: 5V±5%
Power	consumption: < 0.5W
Interface	USB2.0
Storage Medium	SLC; MLC
Writing Circulation	SLC: 100000 times; MLC: 3000 times
Capacity	SLC: 1G, 2G, 4G, 8G
Capacity	MLC: 16G, 32G, 64G, 128G
Refractoriness	15min / 1100℃ or 20min / 950℃ or 120min / 260℃
Immersion	240 hours / 100m deep water
Impact Force	50ms / 100Gs (all axes)
Static Extrusion Force	5min / 15kN (all axes)
Standard	EUROCAE ED-155:2009, EN 1047-2:2009
Dimension	122x88x57mm
Weight	0.98kg
