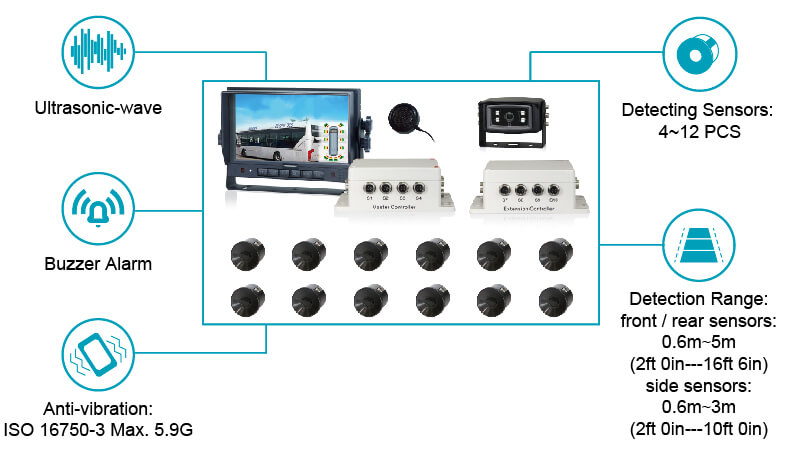

STONKAM® universal Ultrasonic Blind Spot Detection Kit supports 6/12 channels radar detection and 5 meters (16.4ft) detection distance. It achieves real-time display of the obstacle distance on the monitor. Click to see more radar detection systems.
|
Item |
BS-A09 |
|
|
System |
IC |
Altera Cyclone IV、ADI |
|
Video |
Video input |
PAL,NTSC |
|
CVBS output |
1CH 4pin aviation connector output PAL/NSTC |
|
|
Video standard |
PAL: 25FPS, NTSC: 30FPS |
|
|
Radar |
Detecting Distance |
0.60m---5.00m(1.97ft --- 16.4ft) |
|
Best Detecting Distance |
0.60m---3.00m(1.97ft --- 9.8ft) |
|
|
Display Unit |
M or FT (Optional) |
|
|
Number of Sensors |
6 pcs or 12 pcs |
|
|
Color of Sensors |
Black(default) |
|
|
Ultrasonic Frequency |
40kHz±1.5 kHz |
|
|
Size |
⌀35mm，L=33mm |
|
|
Alarm |
Alarm output |
Beep |
|
Trigger |
Trigger input |
High active(DC 10-32V) |
|
Trigger output |
Connect to GND when active, float when inactive |
|
|
Interface |
Video input |
1 channel |
|
Video output |
1 channel |
|
|
Trigger input |
1 channel |
|
|
Trigger output |
1 channel |
|
|
Buzzer output |
1 channel |
|
|
Radar input |
6 pcs or 12 pcs |
|
|
Electrical spec |
Power Supply |
DC 10-18V |
|
Operating temp. & humidity |
-20～70 degree/ <90% |
|
|
Video input impedance |
75ohm |
|
|
Video output voltage |
1Vpp CVBS output |
|
Click to check the specifications of the 7 inch monitor and the waterproof camera.
Why do you need to install a blind spot monitoring system?
Is it useful?
The answer is certainly yes! With a blind spot alert system, the following problems can all be solved.
How to avoid collision and crash when parking / starting in a small garage?
How to deal with the blind spot of the rear view mirror where vehicles cannot be seen before change the lane?
What to do in heavy rains, fog and dark night lights when visibility is limited?
How to initiatively be alerted to the danger when reversing or parking?
......
Dont forget! Trucks have blind spots
Due to their size and length, trucks have larger blind spots than the average car. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.
To Be Truck Aware, Come to STONKAM® Blind Spot Alert System for A Security Solution.
Radar can be integrated with 360° vision system
Automatically remind the driver to avoid potential danger and allow them to take proper actions in advance.
STONKAM® supplies best blind spot alert system that fit various vehicles. For any customization needs, please kindly contact us.
|
Solution 1 |
|
Solution 2 |
BS-A09:
 |
 |
 |
 |
| Buzzer |
Sensor |
Data Cable |
Extension Cable(Optional) |
MO-127D:
 |
 |
 |
 |
 |
| Sun Shield |
U- Support Bracket |
Center Mount Bracket |
Angle Adjustment Screws |
AV and Power Supply Adapter Cable |
 |
|
|
|
|
| IR Remote Control |
|
|
|
|
