Precise Infrared All-in-One Temperature Detection System
(Model:TC932)
Precise Infrared All-in-One Temperature Detection System
Features

STONKAM® Precise Infrared All-in-One Temperature Detection System adopting technologies of thermal imaging, near-infrared living body detection and visible light face recognition, supports fast face recognition and precise body temperature detection with security and stability. The system can be widely applied to the scenes of ID confirmation and body temperature detection in buses, attendance check and security check.


  • Recognition Height: 1.2-2.2M
  • Recognition Distance: 0.3-0.5M
  • Face Angle: left/right: 30°;up/down: 30°
  • Recognition Technology: near-infrared living body detection and visible light face recognition enable the system to be applied to most outdoor scenes and in movement
  • Recognition Speed: face detection tracking 20ms, face detection completion: 300-500ms, body temperature detection: 2-3s/person
  • Accuracy: ±0.3℃
  • Face Database: 30K (extendable)
  • Support recognition of faces wearing safety helmets or glasses
  • Support visitor appointment, visitor appointment on the WeChat official account; IC card and ID card reader supported in user face registration
  • Support off-line storage of 100K faces and recognition records
  • Support saving photos during face recognition
  • Support face recognition with compensated light after IR face detection in total darkness
  • Support photosensitive light compensation in the dark
  • Support serial port and Wiegand outputs; exported contents configurable
  • Support off-line allocation of LAN devices and on-line allocation of HTTP transmission clouds
  • Support configuration of displayed contents; custom company name
  • Support configuration of recognition distance
  • Support custom port connection

Intelligent Infrared Thermal Camera

Specification

Hardware
CPU

Quad-core Cortex processor 1.8GHz

Operating System

Android 7.1

Display

8-inch LCD

Resolution

800*1280@60HZ

Memory

RAM2G

Storage

ROM8GB(16GB)

Case Material

Aluminum alloy housing; tempered glass panel

Binocular Camera Parameters
Camera

Binocular B/W, HDR 2 Megapixels, automatic exposure, automatic white balance, automatic backlight correction

Sensor

1/2.7”industrial binocular HDR image sensor

Frame Rate

Black/while/color Max. 30F, no ghosting

IR Spectroscopy

850nm

Effective Pixel

1920*1080/1920*1080

Lens

M12(f=3.6MM)/ M12(f=3.6MM)

Pixel Size

3.0um X3.0um/3.0um X3.0um

Minimum Illumination

0.01LUX at F1.2/0.1LUX at F1.2

S/N Ratio

41dB

WDR

96dB/105dB

Interface Type

USB2.0

Video Code

H.265 Main Profile Code/H.264 BP/MP/HP Code/MJPEG Code

Image resolution

Main code stream,640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps

Secondary code stream,640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps

General Parameters
Power Supply

DC 12V/2A

Operating Temperature

-10℃-+55

Operating Humidity

RH10-90%, no condensation

Power Consumption

16W

Dimensions

238*135*23.8mm(L*W*H

Weight

0.9KG (may vary from different configurations)

Installation Method

Wall-mounted or stand-mounted




Why do you need STONKAM® Precise Infrared All-in-One Temperature Detection System?


Non-contact Precise Temperature Measurement

Thermal imaging technology used to detect regional temperatures of the whole face and calculate the precise temperature with an accuracy of ±0.3℃.

Thermal camera

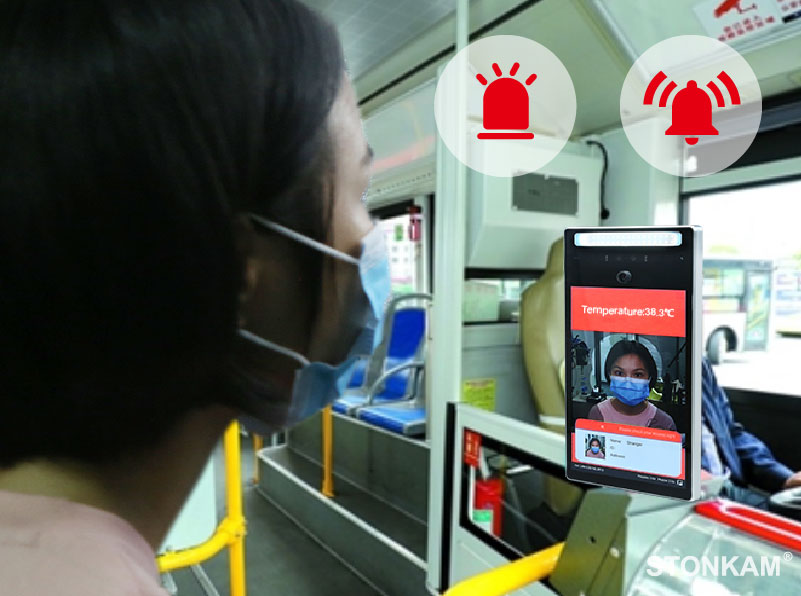

Auto-Alarming in Real Time + Fast Temperature Measuring

The system supports reading out the temperature in multiple languages. When abnormal temperature is detected, an alarm will be launched and the whole picture will flicker in red. In the face database of 30K, the face tracking and detection will take about 0.02s, and living body detection 0.2s, face trait extraction 0.15s, face comparison 0.4s. Faces wearing safety helmets or glasses are both detectable.

Body temperature measurement devices




Support ID Confirmation

The all-in-one system supports visitor appointment, visitor appointment on the WeChat official account; IC card and ID card reader supported in user face registration, can realize intelligent access control function.

Temperature detection camera

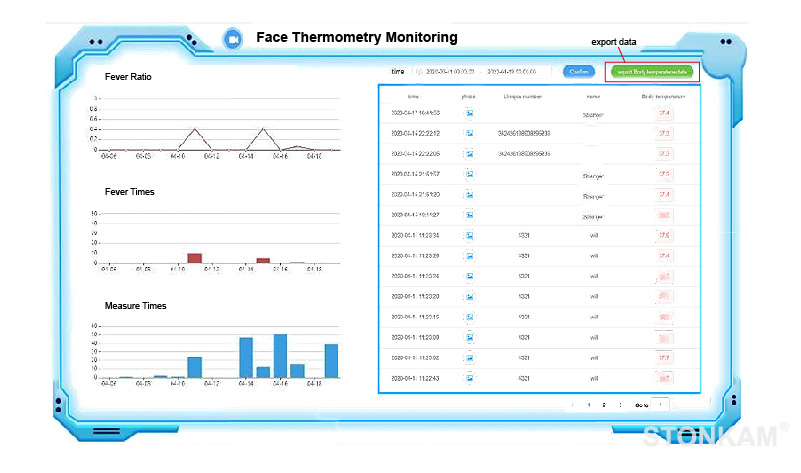

Big Data Analysis

Real-time monitoring of traceable background data; data of recognized persons, time, locations, and temperatures can be exported for storage and analysis.

Temperature measuring instruments

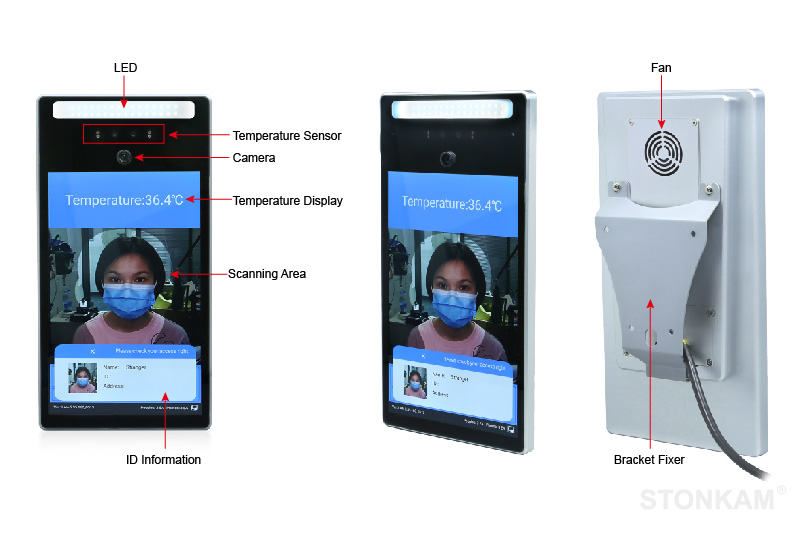

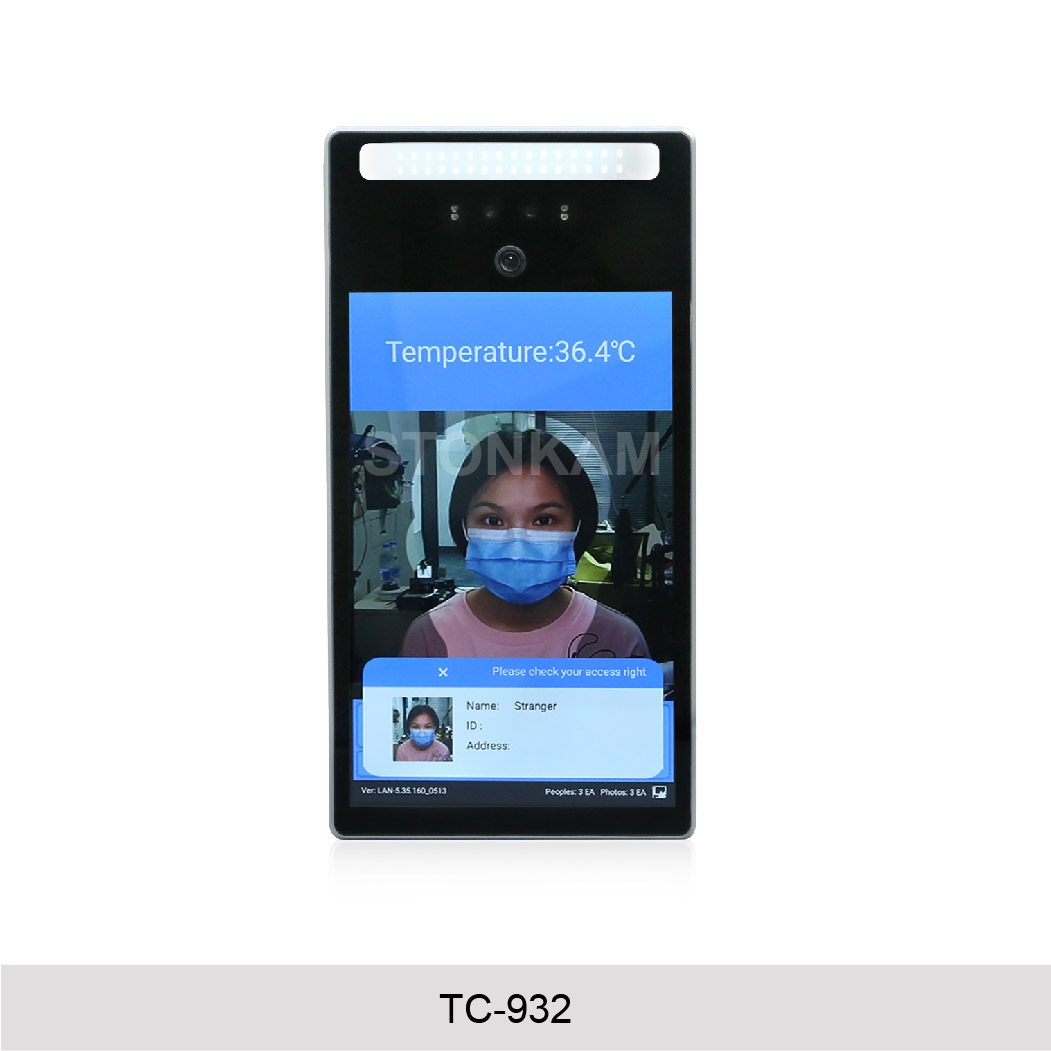

Product Appearance

Temperature check device

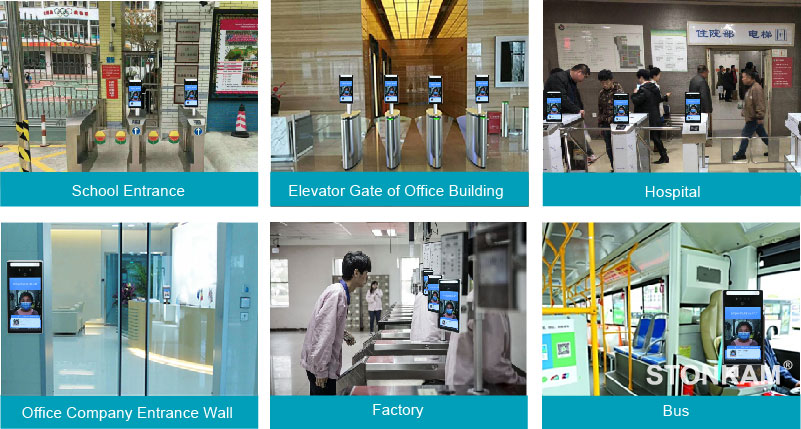

Applications

STONKAM® Precise Infrared All-in-One Temperature Detection System can be widely used in buses, schools, hospitals, office buildings, scenic spots, factories. It’s safe, reliable, and easy to manage.
