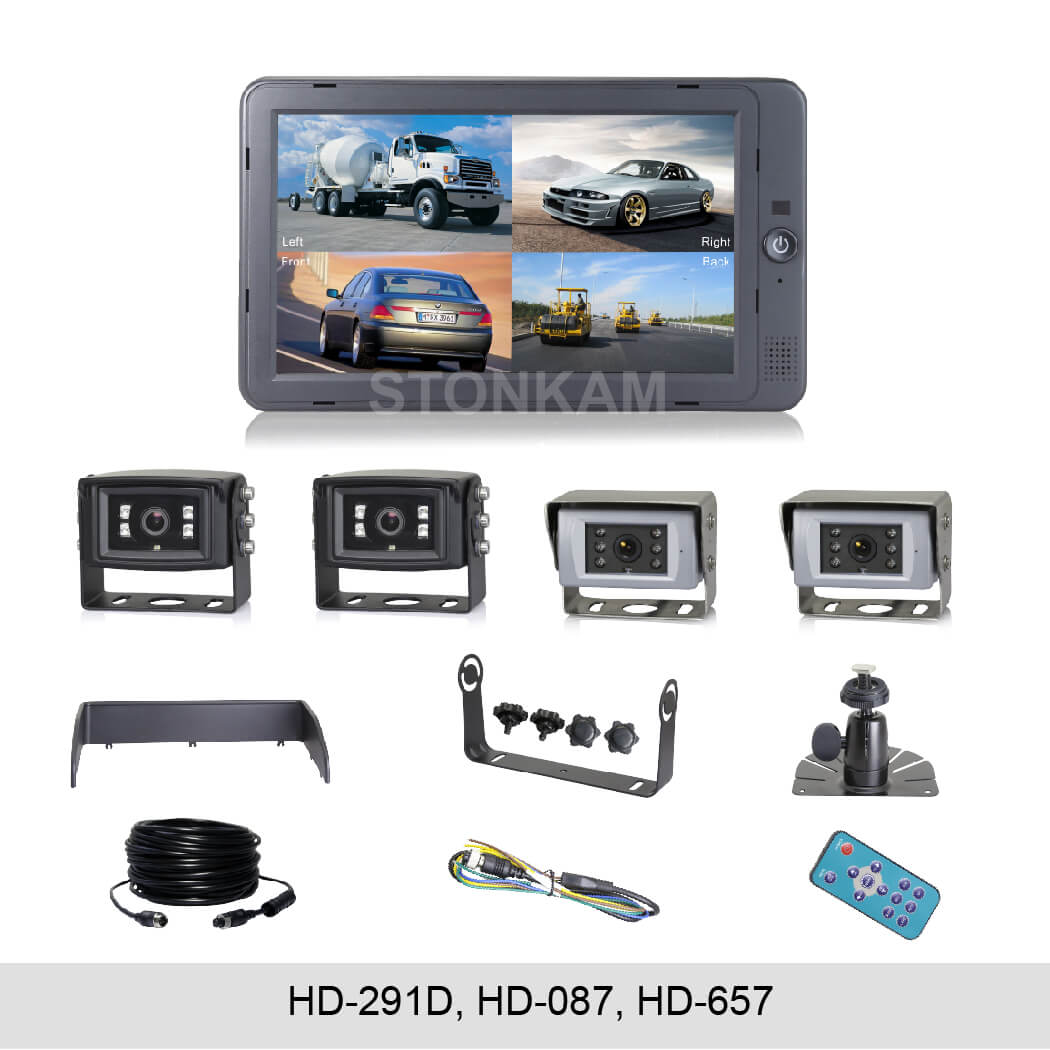

Backup Camera System with 10.1-inch HD Quad-view Monitor

(Model:HD291D,HD087,HD657)

Features

Features of HD Monitor:

Support 4CH x 1080P or 720P cameras
System format: 720P、1080P、NTSC/PAL
Multiple camera image display mode
Trigger priority
Auto scan, scan channel and time can be set according to the users demand
Touch screen available, can recognize left and right side "swipe" to realize channel switching
Support level 60 LCD manual backlight adjustment,level 60 automatic adjustment
Contrast: 600:1
Resolution: 1024*600
Brightness: 600cd/m²
DC: 10-32V
Easy installation and convenient operation, with innovative functions
Applicable to indoor / outdoor security systems, vehicle and ship surveillance

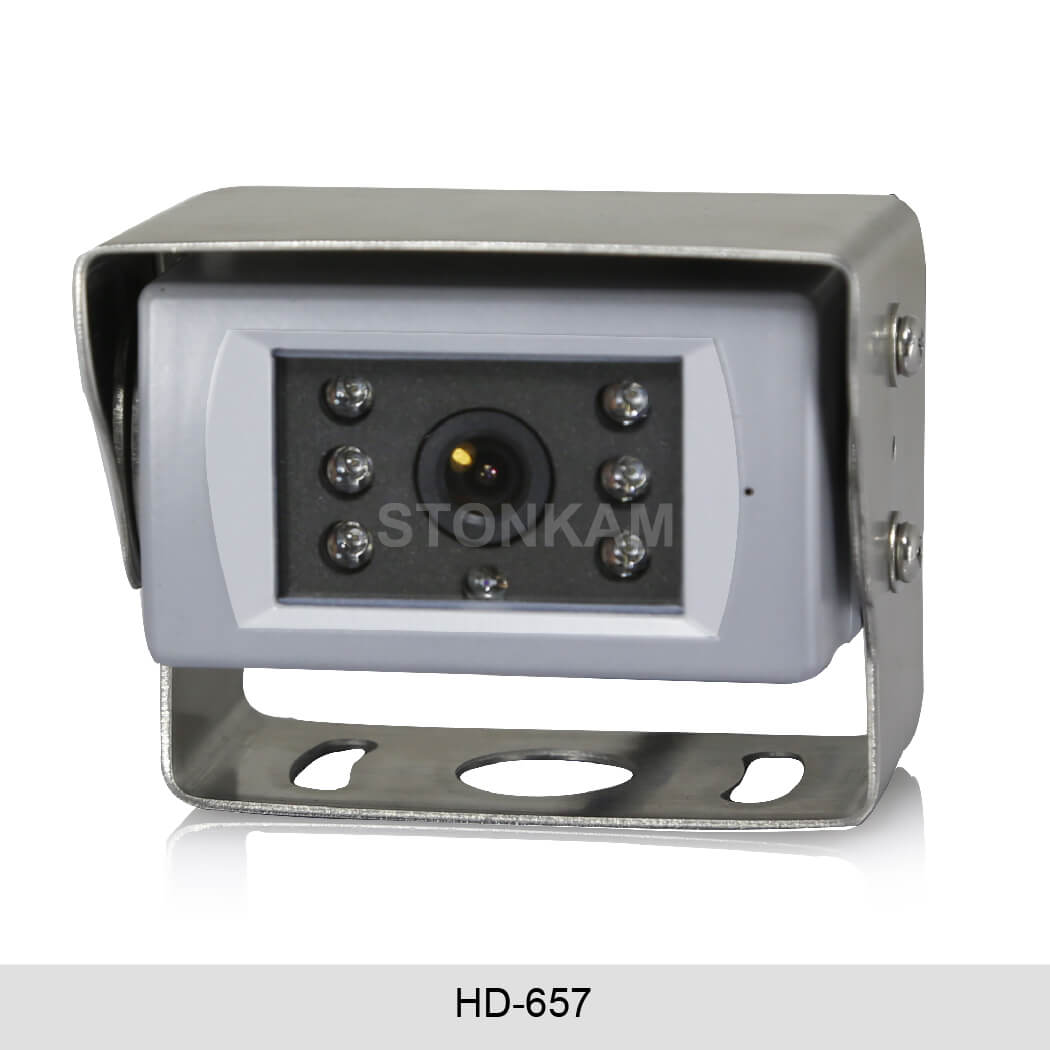

Features of HD Camera:

Resolution:1080P/720P
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Waterproof, shatterproof protection level equals to IP69K.Anti-vibration level equals to 5.9g
Clear picture even at night due to sensor of low illumination and good performance, and IR led lights
Performs in rugged conditions. Operating temperature: -20ºC +70ºC
Mirror/ Normal image switch
25 frames / 30 frames selectable
with audio
Lens angle: 130°, 110°
IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight
Waterproof and weather resistant housing for outdoor use

Backup Camera System with 10.1-inch HD Quad-view Monitor

Specification
