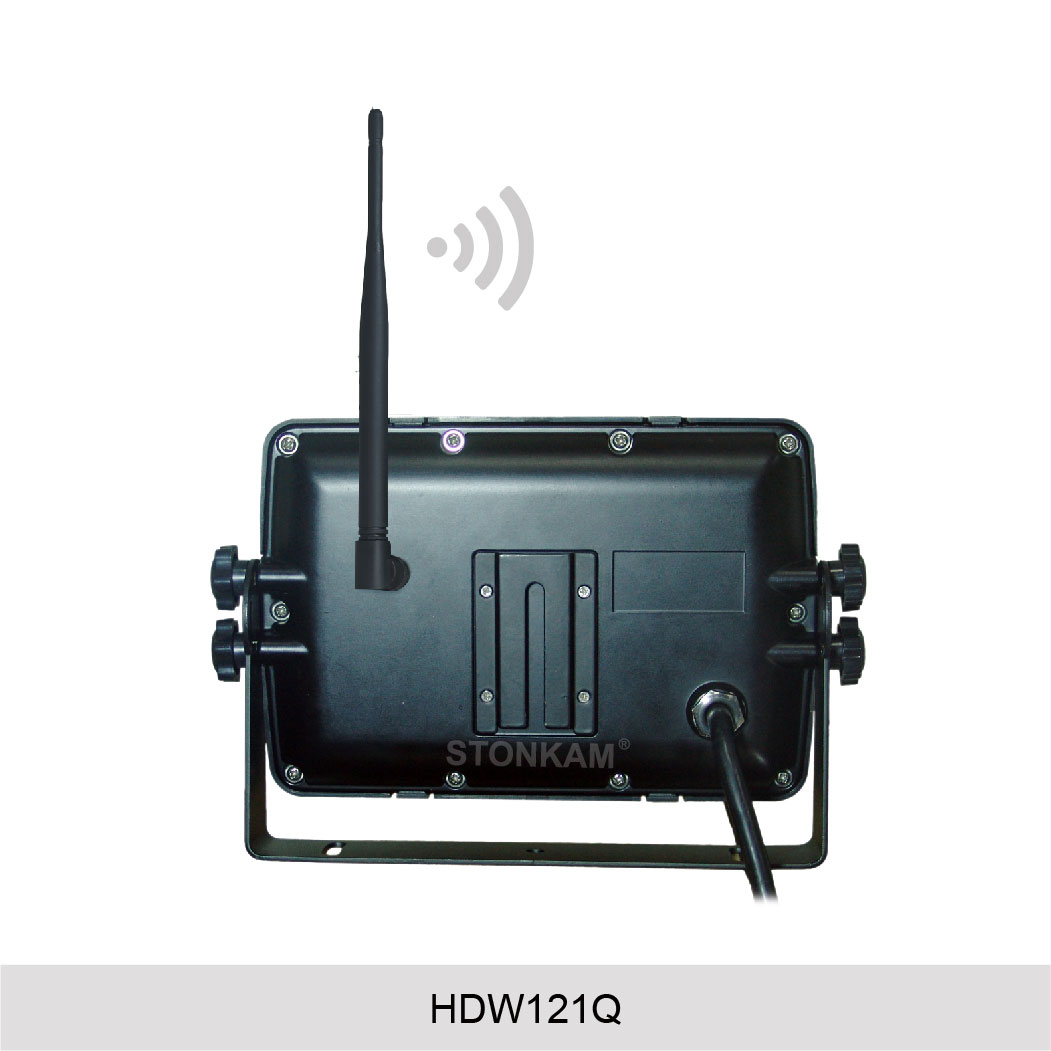

7 inch HD Digital Wireless Monitor
(Model:HDW121Q)
7 inch HD Digital Wireless Monitor
Features

STONKAM® 7 inch HD Digital Wireless  Monitor is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD wireless cameras to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Wireless Monitor System products.


  • Support 4CH wireless camera and wireless transmitter.
  • Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
  • Supports both manual and automatic pairing.
  • Supporting 1080P/720P camera input.
  • Touch screen optional.
  • Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
  • Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
  • Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
  • Rear view parking lines can be configured.

wireless monitor

Specification

LCD size

7"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:80 / D:85, R/L:85

Aspect Ratio

16:9

Channel

4 channels

Operating Frequency

2400MHz ~ 2483.5MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmitting power

FCC≤26dBm

CE≤20dBm

MIC≤10dBm

Decompression Form

H.264

Modulation

FHSS

Time Delay

200ms

Transmitting Distance

FCC≤300 M

CE≤200 M

MIC≤60 M

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10 W

Loudspeaker

1W/8Ω

Operating temperature

-20~+70ºC,RH90%

Storage temperature

-30~+80ºC,RH90%




What are the benefits of STONKAM® 7 inch Digital Wireless Vehicle Monitor?





Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Digital Wireless vehicle Monitor



Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

2.4GHz Digital Wireless Monitor-Stable Connection



Open transmission distance up to 984ft (300m)

wireless monitor

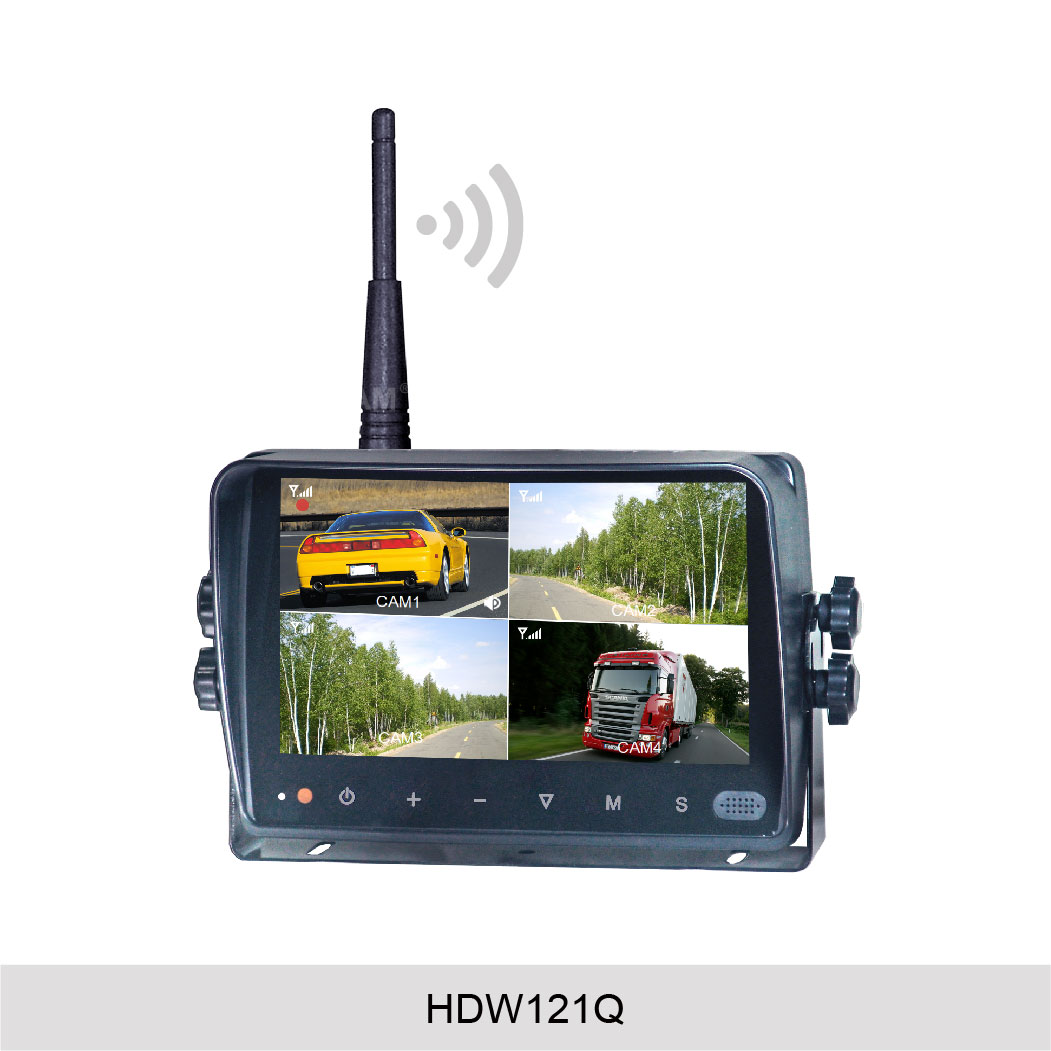

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

WIRELESS MONITOR



Touch screen optional

wireless monitor



Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor can be applied to various vehicles, such as forklift, crane, harvester, etc.

7 inch 2.4GHz Digital Wireless Monitor System-Application
Harvester
Excavator
7 inch 2.4GHz Digital Wireless Monitor System-Application
Farm
Forklift
7 inch 2.4GHz Digital Wireless Monitor System-Application
Crane
Planter
Applications

STONKAM® Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.


For Truck:

wireless monitor


For Harvester:

wireless monitor


For Planter:

wireless monitor
