10.1-inch HD Quad-view Color Monitor

Products > Monitor > C Series > 10.1-inch HD Quad-view Color Monitor

(Model:HD291D)

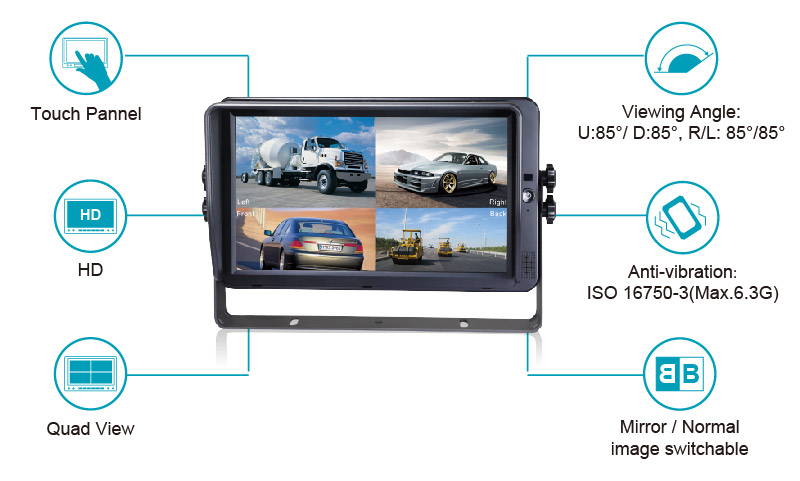

Features

Support 4CH x 1080P or 720P cameras
Video input:1 x VGA、1 x DVD
System format: 720P、1080P、NTSC/PAL
Multiple camera image display mode
Trigger priority
Auto scan, scan channel and time can be set according to the users demand
Touch screen available, can recognize left and right side "swipe" to realize channel switching
Support level 60 LCD manual backlight adjustment,level 60 automatic adjustment
Contrast: 600:1
Resolution: 1024*600
Brightness: 600cd/m²
Power consumption: MAX.25W
DC: 10-32V
Easy installation and convenient operation, with innovative functions

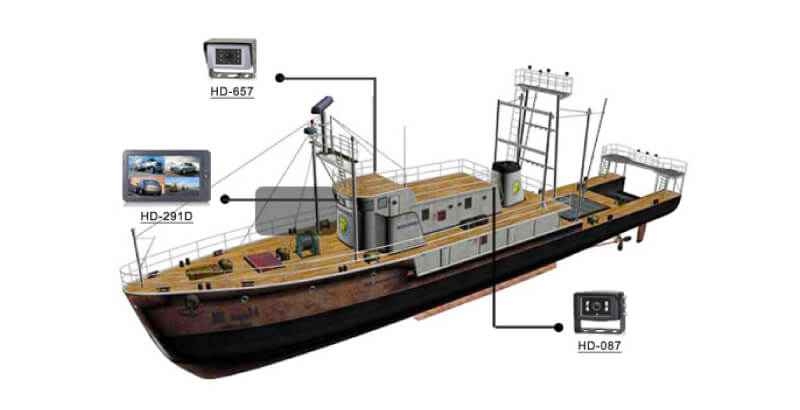

Applicable to indoor / outdoor security systems, vehicle and ship surveillance

10.1-inch HD Quad-view Color Monitor

Specification

Description	HD 10.1" Quad-View Color monitor
Resolution	1024 x 3(RGB) x 600
Anti-vibration	ISO 16750-3 Max. 6.3G
Maximum Number of Cameras	4
Audio input	4
Audio output (loudspeaker)	1W
VGA input	1
DVD input	1
Trigger	5
Max. Brightness	600 cd/m²
Contrast	600：1
Minimum Operating Temperature	-20ºC, RH 90%
Maximum Operating Temperature	+70ºC, RH 90%
Viewing Angle Monitor	U: 85/ D:85, R/L: 85/85
Mirror Function	Yes
Monitor Diameter (mm)	267mm (W) × 159.5mm (H) × 30mm (T).
Split Screen	Yes
Volts	10-32V
Consumption	less than 12W (without cameras)
