STONKAM® 8CH Vehicle DVR System uses H.264 compression technology and supports real-time remote monitoring; it can work with our ADAS and Driver Status Monitoring System for good fleet management (Contact for details). Click to see more mobile DVR camera systems.
|
System |
Operating system |
Linux |
|
Operating interface |
Graphical menu operation interface(OSD) |
|
|
Video permission |
Administrator & user setting |
|
|
Video |
Video input |
Max 8ch 1080P analog high definition |
|
CVBS output |
1CH 6pin aviation connector output PAL/NSTC |
|
|
HD output |
1CH 1080P |
|
|
Video display |
1 or 4 or 8CH |
|
|
Video standard |
PAL: 25FPS, NTSC: 30FPS |
|
|
Compression |
H.264 main profile |
|
|
Total resources |
1080P PAL: 200FPS; NTSC: 240FPS |
|
|
Audio |
Audio input |
8 channels |
|
Audio output |
2 channels |
|
|
Record format |
Synchronized video & audio recording |
|
|
Audio compression |
ADPCM |
|
|
Digital processing & storage |
Video resolution |
8*1080P(1920*1080) |
|
Video quality |
1~8 level adjustable |
|
|
Video bit rate |
128kbps~6Mbps/channel |
|
|
Storage |
56~2700MB/(channel*hour) |
|
|
Playback resolution |
8*720P or 8*1080P(encoding & decoding at the same time) |
|
|
Audio bit rate |
32kbps |
|
|
Storage |
2.5 inch SATA SSD * 1, max 2TB; SD card * 1, max 128GB |
|
|
Alarm |
Alarm input |
8 channels |
|
Alarm output |
2 channels |
|
|
Motion detection |
High / Low / Off |
|
|
Interface for communication |
IR |
1 channel |
|
RS232 |
2 channels |
|
|
RS485 |
2 channels |
|
|
CAN |
1 channel |
|
|
RJ45 |
1 channel |
|
|
USB2.0 |
1 channel |
|
|
USB3.0 |
1 channel for file backup and firmware upgrade |
|
|
Wireless |
3G/4G |
HSPDA/EVDO/FDD-LTE/TDD-LTE module optional |
|
WIFI |
optional |
|
|
WIFI hotspot/AP |
optional |
|
|
GPS |
Optional,internal GPS/GLONASS module, coordinate/speed can be encoded in video stream and upload to server by wireless communication |
|
|
G-Sensor/Gyroscope |
Available |
|
|
Software |
Windows client |
Available |
|
iOS client |
Available |
|
|
Web portal |
Available |
|
|
Power |
Input |
10~32V |
|
Output |
12V@4A |
|
|
Max Power Consumption |
60W |
|
|
Standby Power Consumption |
100mW |
|
|
Electrical specifications |
Operating temperature & humidity |
-20～70℃<80% |
|
Clock |
Built-in clock, Calendar |
|
|
Super Capacitor |
Available |
|
|
Video input impedance |
75ohm |
|
|
Video output voltage |
1Vpp CVBS output |
|
|
Are You Always Wondering...
How to get a perfect fleet management solution?
How to quickly know whether the driver drives illegally?
How to quickly provide evidence for traffic accident, theft, racketeering, etc.? ......
|
|
STONKAM® Vehicle DVR System can solve your worries! |
Professional 1080P vehicle DVR system for effective fleet management
It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Achieve remote monitoring by DVR GPS tracking/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone
Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client, iOS APP. The vehicle mobile DVR supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.
|
Detailed Features of STONKAM® Vehicle Surveillance System |
GPS Vehicle Historical Track Playback
Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
This automobile DVR system can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.
Set all MDVR features by touch screen monitor
Powerful Recording
This vehicle DVR camera System features diverse recording modes, various video storage devices, integration of vehicle information, and the double protection of recording data.
|
Recording Quality |
Storage Capacity |
Bit Rate |
Recording Time |
|
1080P（8CH） |
2T | 4Mbps |
150 Hrs |
|
720P（8CH） |
2T |
2Mbps |
300 Hrs |
|
D1（8CH） |
2T |
1Mbps |
600 Hrs |
User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

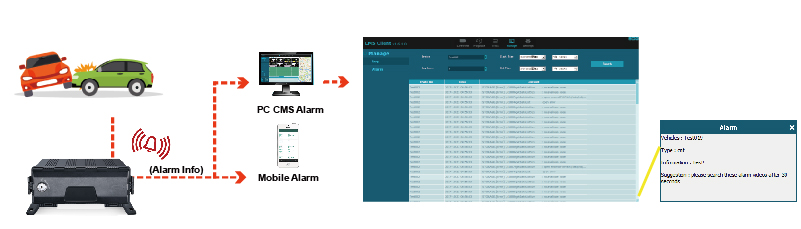

Alarm info pop up on PC / mobile APP
Easy to analyze the abnormal situation of vehicles and to track the relevant information.
Remotely download video
Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.
Dual-stream storage design for more secure data protection
The mobile DVR adopts dual stream storage to prevent any loss of data.
Support 15s pre-recording and mandatory event videos saving
9-axis G-force, more sensitive to vehicle reaction.
STONKAM® 8CH vehicle dvr camera systems are widely used worldwide.
8CH 1080P DVR System:
|
|
|
|
|
|
Wi-Fi Antenna (Optional) |
3G Antenna
(Optional) |
4G Antenna
(Optional) |
GPS Antenna
(Optional) |
All-in-one Antenna
(Optional) |
|
|
|
|
|
| DB44 Wire | DB26 Wire |
USB Extension Cable |
Conversion Box (SATA to USB) |
Panic Button
(Optional) |
 |
 |
 |
 |
 |
|
5P Input Wire |
10P Input Wire |
9P Aviation Power Input Wire |
4P to 4P conversion cable (Optional) |
Remote Controller |
 |
 |
 |
 |
 |
|
Operating Manual |
Disk |
DVR Key |
Screw |
4P Extension Cable
(Optional) |
HD Quad-view Monitor:
 |
 |
 |
 |
 |
| Sun Shield |
U- Support Bracket |
Center Mount Bracket |
Angle Adjustment Screws |
Power Cable |
 |
 |
|
|
|
| IR Remote Control |
Extension Cable |
|
|
|
