1080P radar detection system & blind spot monitoring system from STONKAM adopts 24GHz millimeter-wave radar technology to make it all-weather. The powerful system supports BSD (Blind Spot Detection), LCA (Lane Change Assistant), RCTA (Rear Cross Traffic Alert). It has been widely applied to heavy-duty commercial vehicles. More radar alarm systems are available here.
| Frequency | 24GHz |
| Power Supply | 10 to 32V DC |
| Detection Range | 0.5~25m |
| Antenna Beam Angle | 60° (Horizontal), 16° (Vertical) |
| Trigger Input ×3 | Left Trigger, Right Trigger, Reverse Trigger |
| Alarm Output ×2 | LED Alarm output x2 |
| buzzer alarm output | |
|
BSD/LCA startup speed |
> 20km / h |
| BSD detection range |
3 x 7m |
|
BSD speed measurement |
-36〜80km / h |
| LCA detection distance |
25m; TTC <2.5s |
|
RCTA detection distance |
15m |
| Video format | 720P 25fps/30fps, 1080P 25fps/30fps |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| IP Protection | IP67 (sensor),IP66(Control Box) |
| Vibration Rating | 5.9G |
| Dimensions | Sensor: 104.3(W) ×80.5(H) ×25.4(D) mm |
| Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm | |
| Weight | 219.9Grams (sensor), 240Grams (control box) |
| Mounting | Two (4.5mm) diameter mounting holes (sensor) |
| Four (6mm) diameter mounting holes (control box) |
|
Why do you need to install blind spot detection system?
|
Unignorable Vehicle Blind Spots
Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.
It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.
Area A, B, C: Half blind area
Severity of danger depends on the vehicle size.
Area D: Full blind area
Beyond the sight of the driver and 3 rear view mirrors.
Area E: Full blind area
Pillar A near the windshield hinders the vision, which creates the blind spots.
Do not forget! Trucks have blind spots.
Due to their size and length, trucks have larger blind spots than the average cars. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.
To Be Truck Aware, Come to STONKAM® Radar Detection System for A Security Solution.
STONKAM® 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system complete safeguard your driving
Radar detection system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.
Double guarantee with dual LED lights + buzzer warning
This radar detection system can provide visual and audible alert to operators to avoid potential danger and allow them to take proper actions in advance.
BSD (Blind Spot Detection)
Vehicle-use radar detection system & blind spot monitoring system can transmit radar detection signal to the blind spots when the car is running, radar detection signal transmission range - up to 82ft (25m) . When other vehicles are approaching the blind spots - 23ft (7m) behind the vehicle, the system will launch audio warning the driver to avoid collision.
LCA (Lane Change Assistant)
When cars or pedestrians are approaching the detection area - 23~82ft (7~25m) behind the vehicle, and TTC (Time to Collision) <2.5S, LED lights are always on. If the driver is about to change lanes, the blind spot monitoring system will launch audio warning and flickering LED lights to warn the driver to avoid accidents caused by not having noticed the cars or pedestrians.
RCTA (Rear Cross Traffic Alert)
RCTA will keep detecting and scanning the lateral and rear area when the driver is reversing the car. If moving objects like pedestrians, animals or motor vehicles are approaching the rear side of the car, the buzzer will make audio warning and LED lights will flicker to avoid collision, and assist safe parking.
Long detection range, high sensitivity, max detection range of 25m.
STONKAM’s 1080P 24GHz millimeter wave radar detection system & blind spot monitoring system is suitable for blind spot detection, lane change assistance and reversing, and it’s widely applied to all types of vehicles like buses and trucks.

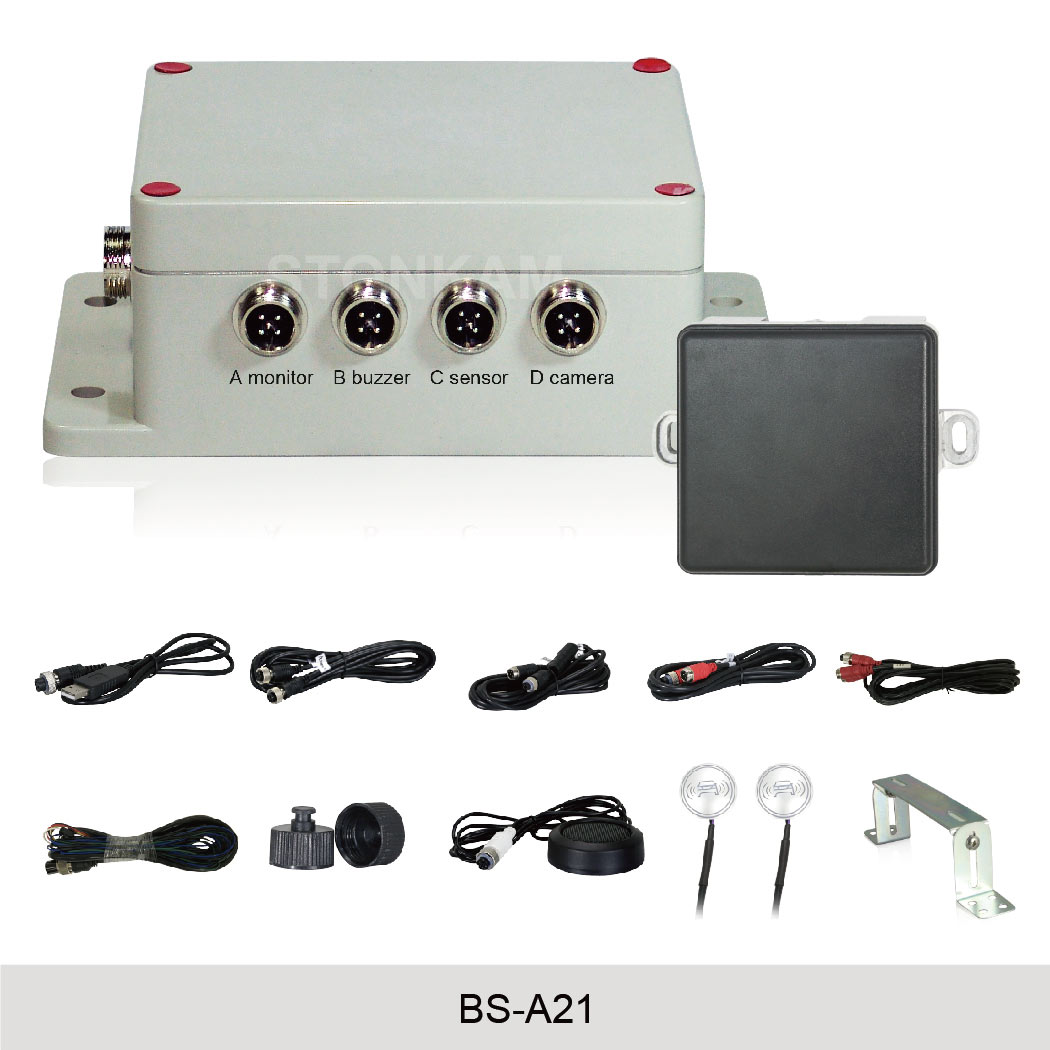

1080P 24GHz millimeter wave radar detection system & blind spot monitoring system:
 |
|
|
|
|
| Camera cable (4pin) |
Extension cable (4pin) |
Sensor transition Cable |
Dual Sensors Transition Cable |
USB to UART Cable |
|
|
|
|
 |
| Monitor Transition Cable (4pin) |
Buzzer |
Plug Sealer
|
Sensor Mounting Bracket (Two Sizes Optional)
|
LED light |
