Products > 720P/1080P Camera > 1080P Cameras > 1080P AI Pedestrian Detection Camera

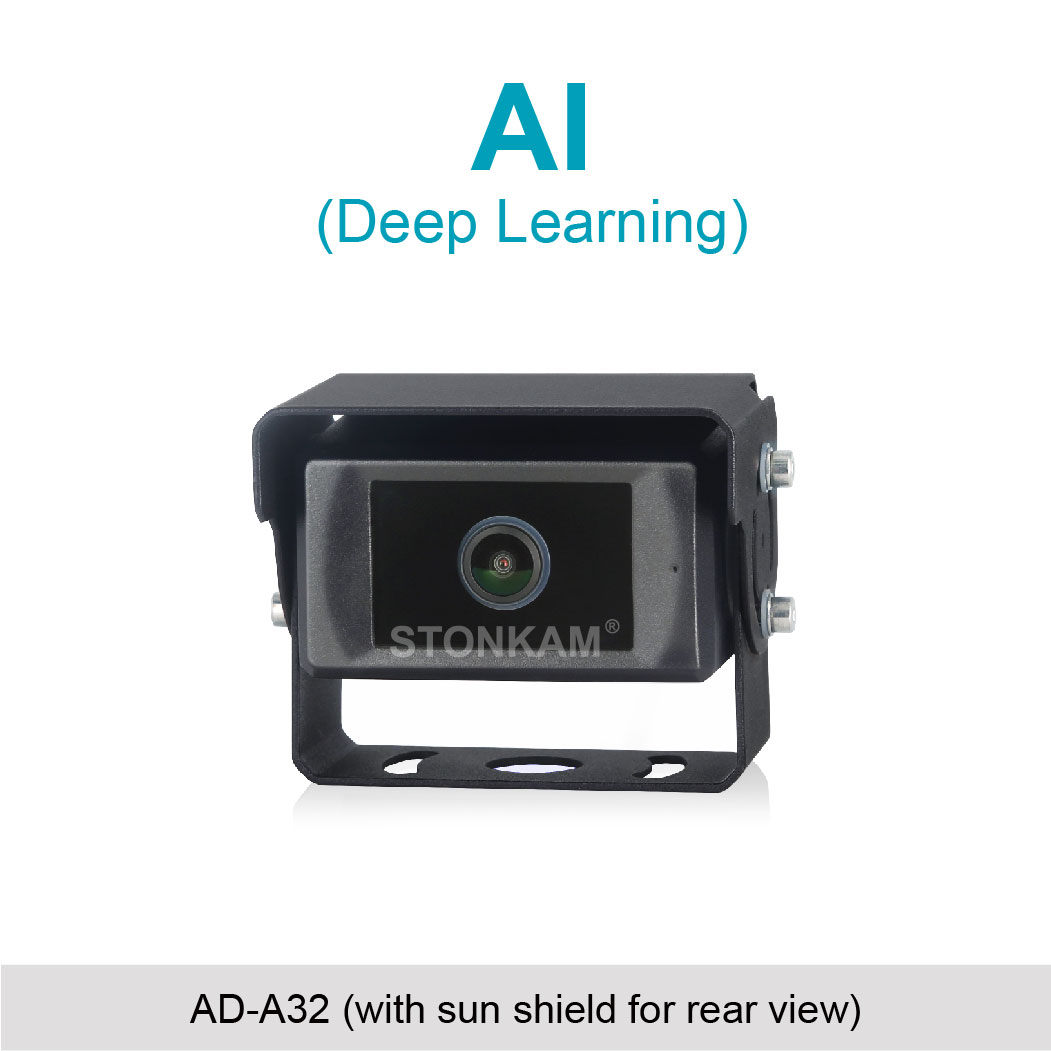

1080P AI Pedestrian Detection Camera

(Model:ADA32)

Features

STONKAM® 1080P AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle , on the side and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety! The intelligent pedestrian detection camera can be installed on the side, front and back of the vehicle, to intelligently detect pedestrians within 20M in real time. In addition, this system can be used in various vehicles, such as buses, coaches, trucks, and construction machinery, etc.

Easy installation
Waterproof/Dustproof rating: IP69K, with shock resistance of 5.9G
The detection distance of front and side view is: 0.5M-20M; the detection distance of rear view is: 0.5M-12M
Full high definition 1080P video output (overlaid with pedestrian tracking and warning box)
Audio alarm output, can be connected to monitors or other devices with loudspeaker
Lens parameters: side view camera: 6mm, with the horizontal angle of 52°; rear view camera: 2.3mm, with the horizontal angle of 140°
USB2.0 interface, can be connected to WiFi modules and USB
Calibration on the web page of the phone by connecting to the WiFi hotspot
Automatic upgrade via USB
1 channel alarm output

STONKAM 1080P HD Intelligent Pedestrian Detection Camera

Specification

Supply Voltage	DC10V~32V
Consumption (12V IN)	150mA(IR light off)
Consumption (12V IN)	700mA(IR light on)
Video Format	25 or 30
Video Output	AHD(1.0Vp-p, 75Ohm)
Resolution	1920 x 1080P
Horizontal Viewing Angle	52°/140°
Audio Output	Warning sound signal output
Communication Interface	USB 2.0 (for software upgrade)
Cable Length	3M
Working Temperature	-20 ~ +70℃
Storage Temperature	-30 ~ +80℃
Waterproof Rating	IP69K
Dimension	95 x 60 x70(mm)
Weight	500g
Housing Color	Black

Are you worried about following problems when driving：

There are too many blind spots to notice children and pedestrians?

The traffic is too complicated to avoid pedestrians?

What can warn us of the potential danger when driving?

......

Schematic diagram of bus blind spot

STONKAM 1080P AI Pedestrian Detection Camera Based on Deep Learning Complete Safeguard Your Driving

STONKAM® AI Pedestrian Detection Camera is a device aiming to greatly enlarge the drivers field of vision. It can not only quickly detect pedestrians, provide warning information to drivers in real time; but is featured with high detection accuracy, earning drivers more reaction time, thereby reducing the possibility of traffic accidents!

AI algorithm

STONKAM® AI Pedestrian Detection Camera adopts deep learning technology, contributing to the realization of intelligent and accurate pedestrian detection.

STONKAM 1080P HD Intelligent Pedestrian Detection Camera
