STONKAM® 1080P 77GHz Radar Detection System is built on millimeter wave technology allowing for good performance in all weathers. It’s highly helpful for obstacle detection when reverse or park and widely used in large vehicles such as trucks, construction machinery, and agricultural machine. More radar alarm systems are available here.
| Frequency | 76.00...77.00GHz |
| Transmitter Type | FMCW |
| Power Supply | 10 to 32V DC |
| Detection Range | Detection length limit 0.2~40m, width limit, up to 5 detection zones(distance of each zone can be configured ) |
| Detection Zone Visualization | Green (furthest), Yellow(middle), Red (closest) |
| Detection Tolerance | +/- 15 cm |
| Antenna Beam Angle | 120° (Horizontal), 14° (Vertical) |
| Trigger Input ×1 | Trigger from vehicle, high active |
| Range above +10Vdc, up to supply voltage | |
| Alarm Output ×1 | Switched to Ground when activated |
| Loading up to 1.0A | |
| Video format | 720P 25fps/30fps, 1080P 25fps/30fps |
| Wi-Fi module | 2.4GHz(Option) |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| IP Protection | IP69K (sensor),IP66(Control Box) |
| Vibration Rating | 5.9G |
| Dimensions | Sensor: 106.6(W) ×72.9(H) ×34.5(D) mm |
| Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm | |
| Weight | 158.8Grams (sensor), 240Grams (control box) |
| Mounting | Two (4.5mm) diameter mounting holes (sensor) |
| Four (6mm) diameter mounting holes (control box) |
|
Why do you need to install 77GHz millimeter wave radar detector system?
|
Unignorable Vehicle Blind Spots
Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.
It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.
Area A, B, C: Half blind area
Severity of danger depends on the vehicle size.
Area D: Full blind area
Beyond the sight of the driver and 3 rear view mirrors.
Area E: Full blind area
Pillar A near the windshield hinders the vision, which creates the blind spots.
Do not forget! Trucks have blind spots.
Due to their size and length, trucks have larger blind spots than the average cars. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.
To Be Truck Aware, Come to STONKAM® Radar Detection System for A Security Solution.
STONKAM® 1080P 77GHz reversing radar detector system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.
Setup on Mobile APP radar tool by WIFI
Long detection range, high sensitivity, max detection range of 40m.
STONKAM® 1080P 77GHz millimeter wave electronics radar detector system is greatly helpful for reversing and parking, and it’s widely used in large vehicles like trucks, construction machinery, and agricultural machine.

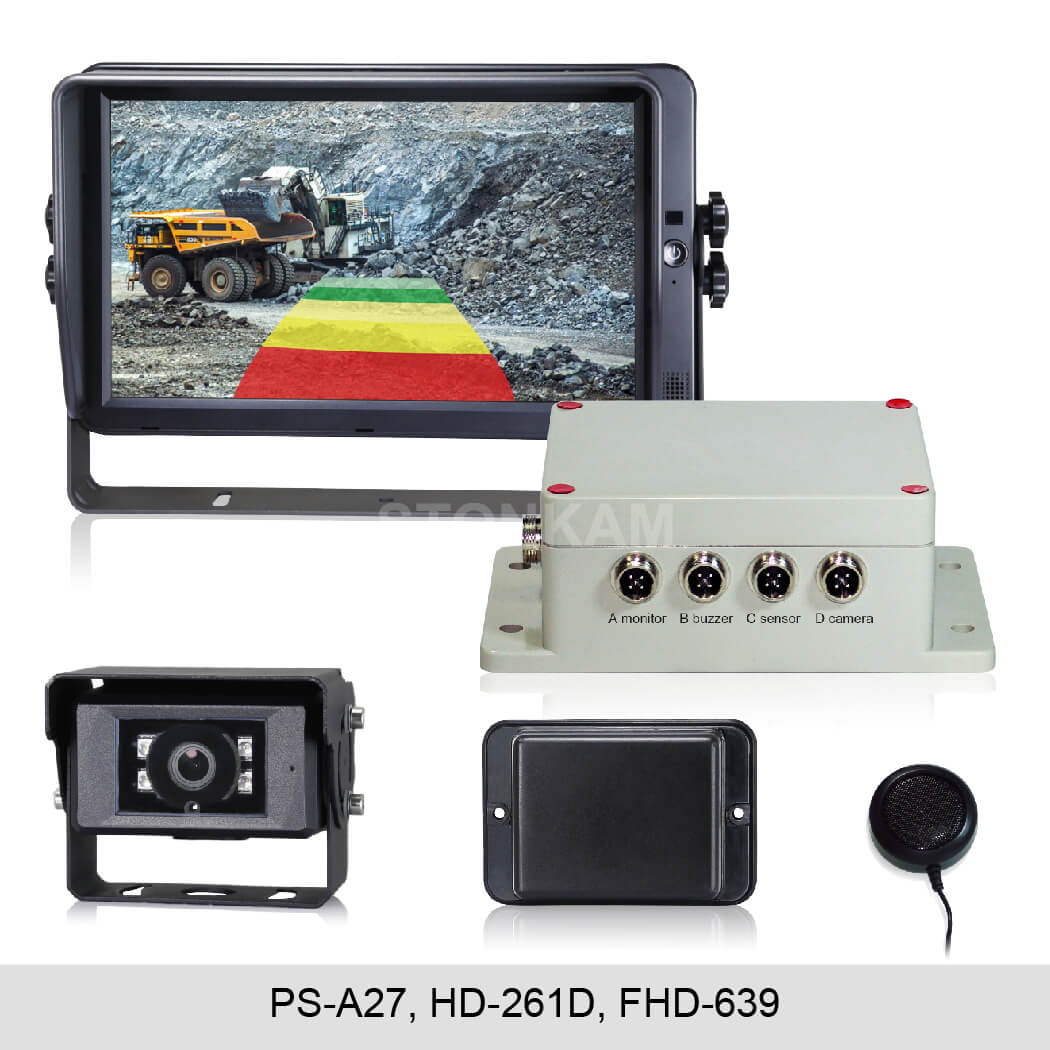

Use together with cameras and monitors:
Use as stand-alone item:

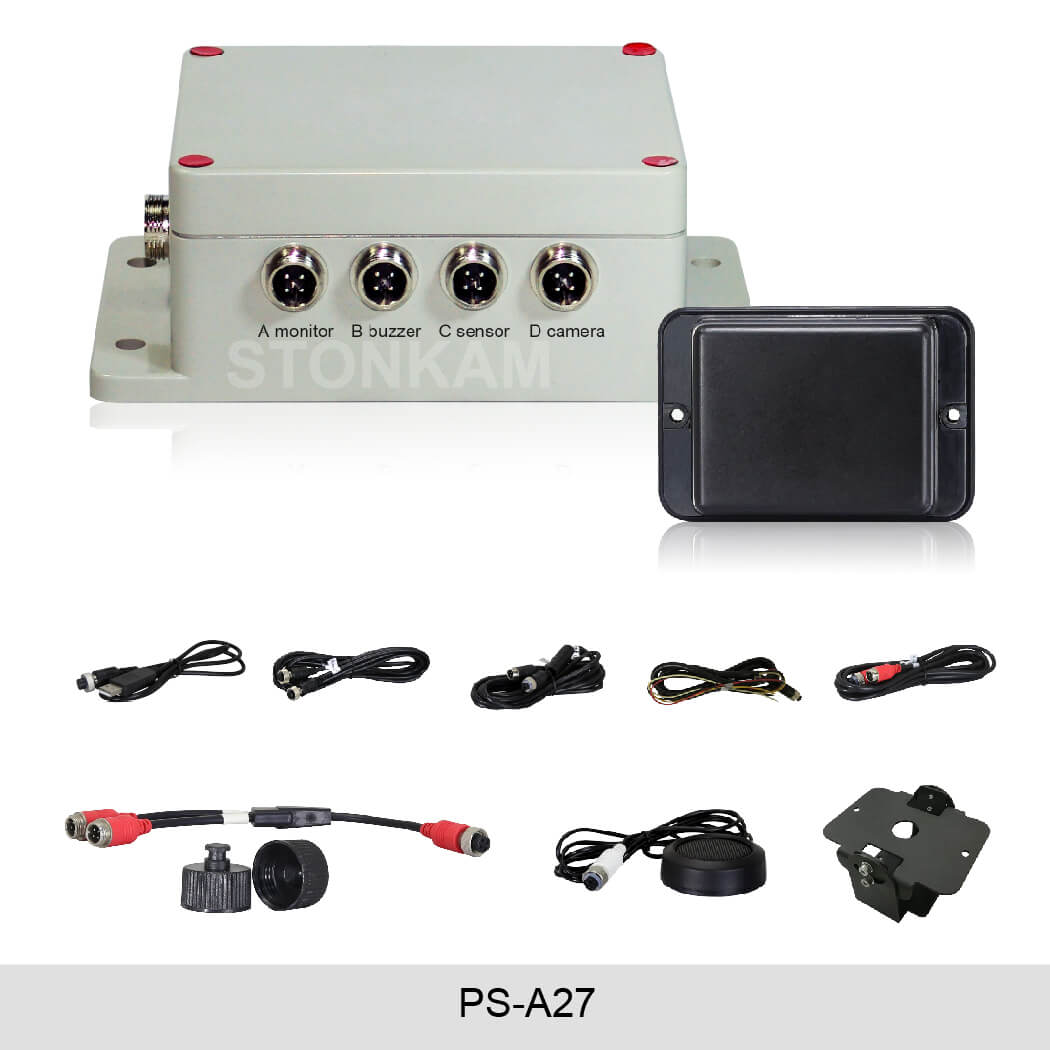

Millimeter-wave Radar Detection System :
 |
|
|
|
|
| Camera cable (4pin) |
Extension cable (5pin) |
Sensor transition Cable |
Dual Sensors Transition Cable (Optional) |
USB to UART Cable |
|
|
|
|
 |
| Monitor Transition Cable (4pin) |
Buzzer |
Plug Sealer
|
Sensor Mounting Bracket (Optional) |
Alarm Buzzer(Optional) |
