Products > 720P/1080P Camera > 720P Cameras > 720P IP69K Waterproof Truck Backup Camera

720P IP69K Waterproof Truck Backup Camera

(Model:HD664)

Features

STONKAM® supplies the best truck backup cameras, featuring 720P high definition, IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

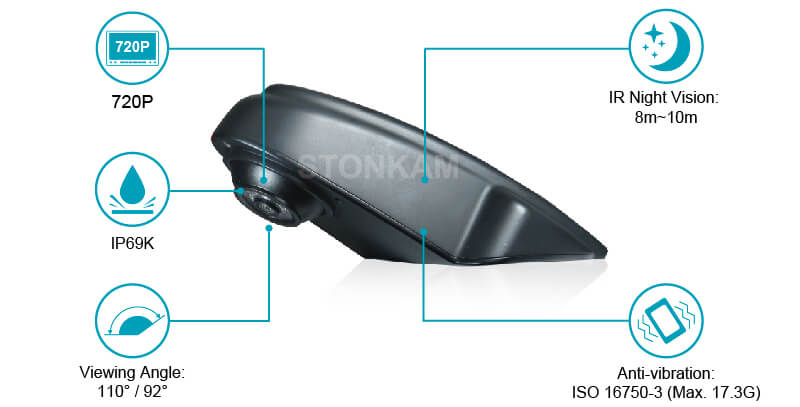

This truck backup camera features:

720P high definition
IP69K waterproof
Viewing angle: 110° / 92°
Night vision distance: 8m ~ 10m (26.25ft ~ 32.81ft)
Anti-vibration: ISO 16750-3 (Max. 17.3G)
DC power: 12V / 10~32V
Working temperature: -20ºC ~ +70ºC
Smart-IR optional

STONKAM® Waterproof 720P Truck Backup Camera

Specification

IP69K Waterproof Truck Backup Camera (HD-664)：

Image Device	1/3" CMOS
Frame Rate	25 fps / 30 fps
Effective Pixels	1280(H) x 720(V)
Pixel Size	3.75 μm × 3.75μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	720P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
White Balance	Auto
Electronic Shutter	1/25 (1/30)～1/50,000 Seconds
BLC	Auto
Operating Temperature	-20℃～70℃, RH 95% MAX.
Storage Temperature	-30℃～80℃, RH 95% MAX.

Applications

It is easy to mount STONKAM® 720P aftermarket backup cameras for trucks and buses.

STONKAM® 720P Backup Camera for Trucks and Buses
