720P WDR Forward Facing Vehicle Camera:
720P Internal View Car Camera:

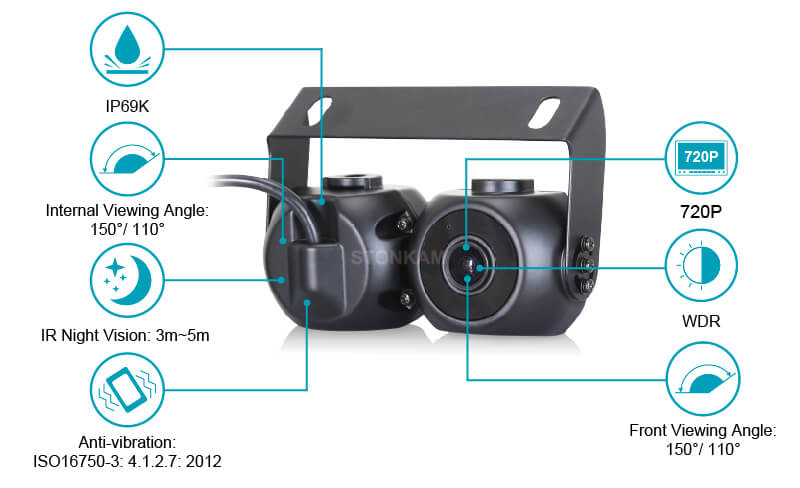

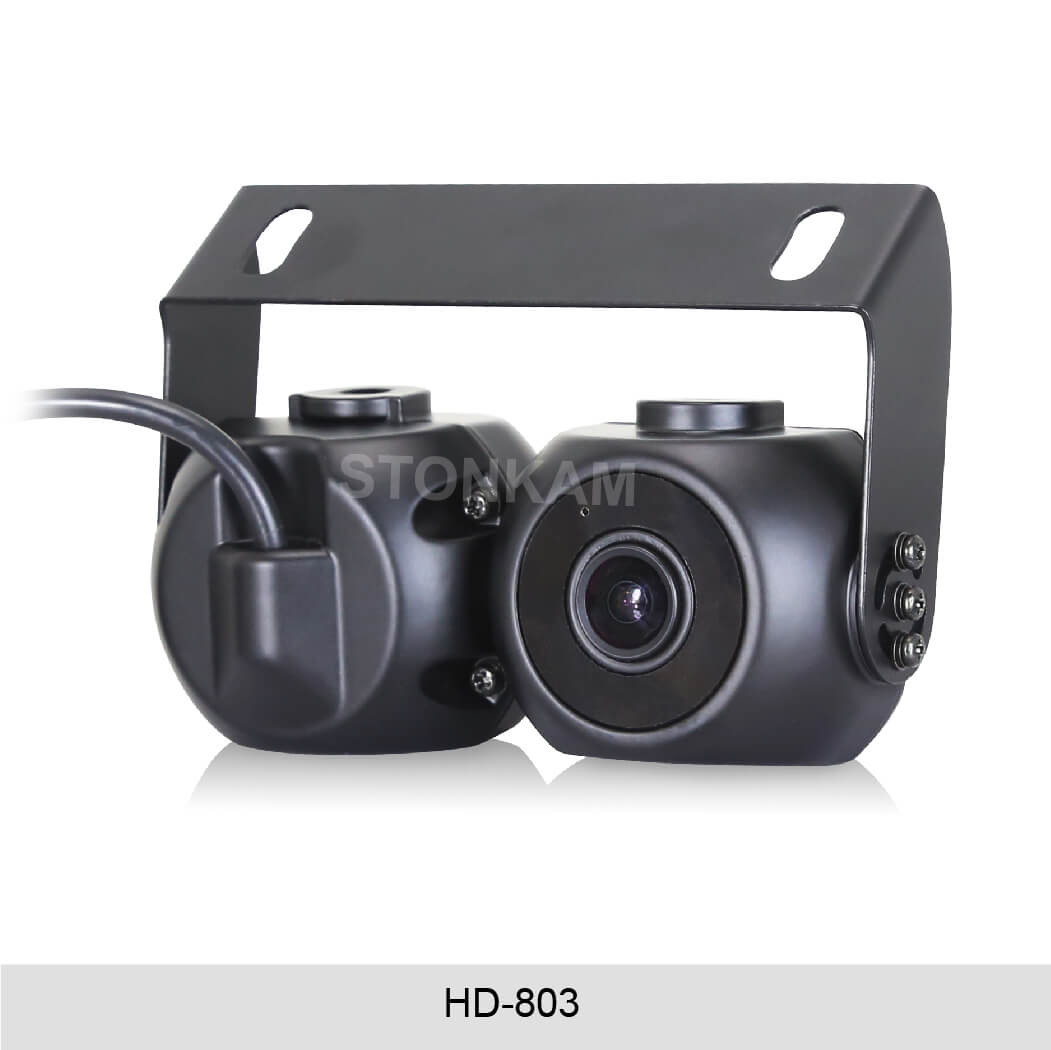

Waterproof 720P Forward Facing Vehicle Camera (HD-803)：
|
Image Device |
1/3" CMOS |
|
|
Frame Rate |
25 |
30 |
|
Effective Pixels |
1280 (H) x 960 (V) |
|
|
Pixel Size |
3.75 μm x 3.75 μm |
|
|
Scanning System |
Progressive Scanning |
|
|
Sync. System |
Internal |
|
|
Resolution |
720P |
|
|
Video Output |
1.0Vp-p, 75Ohm |
|
|
Gamma Consumption |
0.45 |
|
|
AGC |
Auto |
|
|
S/N Ratio |
Better than 52dB |
|
|
White Balance |
Auto |
|
|
Electronic Shutter |
1/30（1/25）～1/50,000 Seconds |
|
|
BLC |
Auto |
|
|
Operating Temperature |
–20℃ ~ 70℃, RH95%MAX. |
|
|
Storage Temperature |
–30℃ ~ 80℃, RH95%MAX. |
|
|
Power Supply |
DC12V / DC10~32V |
|
|
Waterproof rating |
IP69K |
|
|
Viewing Angle |
150°/ 110° |
|
|
Audio |
Yes |
|
|
Minimum Illumination |
0.1 Lux |
|
|
WDR |
120dB |
|
|
Image mode |
Normal |
|
1080P/ 720P WDR Enables Better Images under strong & weak light
The images of 1080P/ 720P WDR is much sharper and clearer compared with normal images, no matter in strong light exposure or dim circumstances when the vehicle are entering/exiting tunnels or encoutering the shifting of strong/weak light conversion.
