STONKAM® supplies the best aftermarket rear view cameras featuring 720P high definition, IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.
This rear view camera features:

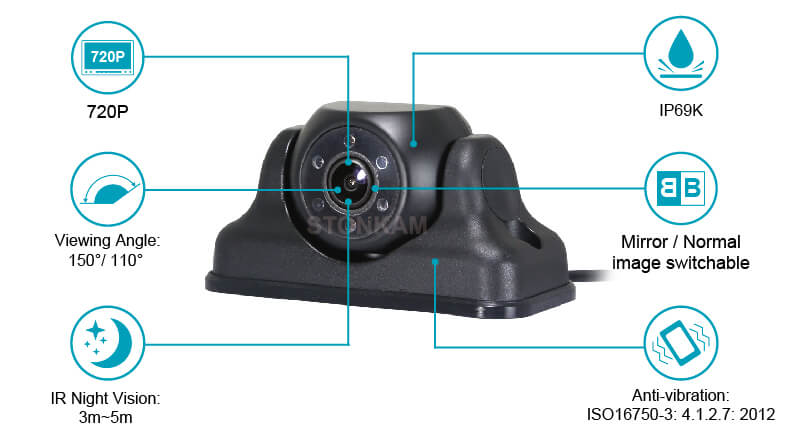

IP69K Waterproof 720P Rear View Camera (HD-804)：
|
Image Device |
1/3" CMOS |
|
|
Frame Rate |
25 fps/ 30fps |
|
|
Effective Pixels |
1280 (H) x 960 (V) |
|
|
Pixel Size |
3.75 μm x 3.75 μm |
|
|
Scanning System |
Progressive Scanning |
|
|
Sync. System |
Internal |
|
|
Resolution |
720P |
|
|
Video Output |
1.0Vp-p, 75Ohm |
|
|
Gamma Consumption |
0.45 |
|
|
AGC |
Auto |
|
|
White Balance |
Auto |
|
|
Electronic Shutter |
1/25（1/30）～1/50,000 Seconds |
|
|
BLC |
Auto |
|
|
Operating Temperature |
–20℃ ~ 70℃, RH95%MAX. |
|
|
Storage Temperature |
–30℃ ~ 80℃, RH95%MAX. |
|
|
Power Supply |
DC12V |
|
|
Waterproof rating |
IP69K |
|
|
Viewing Angle |
150°/ 110° |
|
|
Audio |
Yes |
|
|
Minimum Illumination |
0.1 Lux |
|
|
Night vision distance |
3-5M |
|
|
Image mode |
Mirror/Normal |
|
