STONKAM® IP69K Waterproof Vehicle DVR enables real-time remote monitoring, and can work with our ADAS and Driver Status Monitoring System for effective vehicle surveillance and fleet management. (Contact for details). Click to see the updated Vehicle Camera DVR System that supports one more IP Camera .
Features
of Vehicle DVR (DV-426):
Specifications of Vehicle DVR (DV-426):
|
System |
Operating system |
Linux |
|
|
Operating interface |
Graphical menu operation interface(OSD) |
||
|
Video permission |
Administrator & user setting |
||
|
Video |
Video input |
Max 4ch 1080P analog high definition |
|
|
CVBS output |
1CH 6pin aviation connector output PAL/NSTC |
||
|
VGA output |
1CH VGA connector output, 1080P |
||
|
Video display |
1 or 4 CH |
||
|
Video standard |
PAL: 25FPS, NTSC: 30FPS |
||
|
Compression |
H.264 main profile |
||
|
Total resources |
1080P PAL: 100FPS; NTSC: 120FPS |
||
|
Audio |
Audio input |
4 channels |
|
|
Audio output |
2 channels |
||
|
Record format |
Synchronized video & audio recording |
||
|
Audio compression |
ADPCM |
||
|
Digital processing & storage |
Video resolution |
4*1080P(1920*1080) |
|
|
Video bit rate |
512kbps~6Mbps/channel |
||
|
Storage |
224~2700MB/(channel*hour) |
||
|
Playback resolution |
4*1080P (encoding & decoding at the same time) |
||
|
Audio bit rate |
32kbps |
||
|
Storage |
SD card * 1, max 128GB, SSD * 1, max 2T |
||
|
Alarm |
Alarm input |
6 channels |
|
|
Alarm output |
2 channels |
||
|
Motion detection |
High / Low / Off |
||
|
Interface for communication |
IR |
1 channel |
|
|
RS232 |
1 channel |
||
|
RS485 |
1 channel |
||
|
RJ45 |
1 channel |
||
|
USB2.0 |
1 channel for file backup and firmware upgrade |
||
|
USB2.0 (SSD OUT) |
1 channel for connect to computer to read data from SSD |
||
|
Wireless |
3G/4G |
HSPDA/EVDO/FDD-LTE/TDD-LTE module optional |
|
|
WIFI |
optional |
||
|
WIFI hotspot/AP |
optional |
||
|
GPS |
Optional,internal GPS/GLONASS module, coordinate/speed can be encoded in video stream and upload to server by wireless communication |
||
|
G-Sensor/Gyroscope |
G-Sensor |
||
|
Software |
Windows client |
Available |
|
|
iOS client |
Available |
||
|
Web portal |
Available |
||
|
Power |
Input |
10~32V |
|
|
Output |
12V@3.5A |
||
|
Max Power Consumption |
60W |
||
|
Standby Power Consumption |
100mW |
||
|
Electrical specifications |
Operating temperature |
-20～70℃ |
|
|
Clock |
Built-in clock, Calendar |
||
|
Super Capacitor |
Available |
||
|
Video input impedance |
75ohm |
||
|
Video output voltage |
1Vpp CVBS output |
||
Specifications of Driver Fatigue Monitoring System(DMS-31):
|
Supply voltage |
10~36V DC |
|
Power consumption |
Max 4W |
|
Built-in camera module parameters |
FHD 1920x1080P/25f or 1920x1080P/30f |
|
Video signal |
1CH, AHD, 1920x1080/25f or 1920x1080/30f |
|
Video coding |
H.264 |
|
Video record resolution |
FHD 1920x1080/25f or 1920x1080/30f |
|
Recording parameters |
The recording file is in AVI format, 128G Micro SD card |
|
Audio coding |
ADPCM |
|
WIFI module parameters |
802.11b/g/n 150Mbps |
|
Operation temperature |
-20 ~+70°C |
|
Storage temperature |
-40~85 ℃ |
|
Dimensions |
110x86.5x64 mm |
|
Weight |
200g |
|
GPS |
YES |
|
Speaker power |
Max. 2W |
|
Are You Always Wondering...
How to get a perfect fleet management solution?
How to quickly know whether the driver drives illegally?
How to quickly provide evidence for traffic accident, theft, racketeering, etc.? ......
|
|
STONKAM® HD 1080P Vehicle DVR System can solve your worries! |
Vehicle DVR Integrated with ADAS/DFMS/Radar Solution
Once alarm is triggered by ADAS/DFMS/Radar, ADAS/DFMS/Radar will upload the info to MDVR through CAN or Serial port. Then in MDVR, alarm recording will be triggered as event and the video will be uploaded to MDVR server automatically.
STONKAM Vehicle DVR Integrated with Fatigue Monitoring System Solution:
|
Detailed Features of STONKAM® Vehicle DVR Recorder System |
IP69K Waterproof and MIL-STD 810G shockproof MDVR to protect your data well

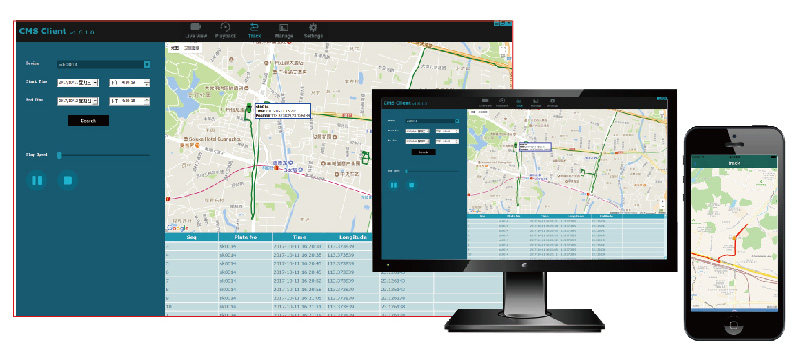

GPS Vehicle Historical Track Playback
Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
The Vehicle DVR can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.
Set all MDVR features by touch screen monitor
Powerful Recording
This vehicle camera DVR features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.
|
Recording Quality |
Storage Capacity |
Bit Rate |
Recording Time |
|
1080P（4CH） |
2T | 4Mbps |
150Hrs |
|
720P（4CH） |
2T |
2Mbps |
300Hrs |
|
D1（4CH） |
2T |
1Mbps |
600Hrs |
User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.
Alarm info pop up on PC / mobile APP
Easy to analyze the abnormal situation of vehicles and to track the relevant information.
Remotely download video
Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.
Dual-stream storage design for more secure data protection
The 4 channel vehicle dvr adopts dual stream storage to prevent any loss of data.
Support 10s pre-recording and mandatory event videos saving
9-axis G-sensor, more sensitive to vehicle reaction.
STONKAM® 1080p vehicle camera recording system can be applied to various kinds of vehicles.
E.g. for Van
E.g. for Bus
