STONKAM® IP69K Waterproof Bus DVR System enables real-time remote monitoring, and can work with our ADAS , Driver Status Monitoring System and Radar system for effective vehicle surveillance and fleet management. (Contact for details). Click to see more Vehicle Camera DVR Systems.
| 4 CH HD and 1 CH IPC DVR | ||
| System | Operating system | Linux |
| Operating interface | Graphical menu operation interface(OSD) | |
| Video permission | Administrator & user setting | |
| Video | Video input | 4 x 1080P analog high definition and 1x 1080P IPC |
| CVBS output | 1CH 6pin aviation connector output PAL/NSTC | |
| VGA output | 1CH VGA output, 1080P | |
| HDMI output | NULL | |
| Video display | 1, 2, 3, 4, 8, 9 | |
| Video standard | PAL: 25FPS, NTSC: 30FPS | |
| Compression | H.264 main profile | |
| Audio | Audio input | 5 channels |
| Audio output | 2 channels | |
| Record format | Synchronized video & audio recording | |
| Audio compression | ADPCM | |
| Digital processing & storage | Image resolution | Max 5 x 1080P(4 CH AHD and 1 CH IPC) |
| Video bit rate | 64kbps~4Mbps/channel | |
| Storage | 56~2700MB/(channelXhour) | |
| Audio bit rate | 32kbps | |
| Storage | 2.5 inch SATA SSDX1, max 2TB; SD cardX1, max 128GB | |
| Alarm | Alarm input | 6 channels |
| Alarm output | 2 channels, 1 buzzer | |
| Motion detection | High/low/off | |
| Interface for communication | IR | 1 channel |
| RS232 | 1 channel | |
| RS485 | 1 channel | |
| CAN | 2 channels | |
| RJ45 | 1 channel | |
| USB mini-B | 1 channel | |
| USB2.0 | 2 channels | |
| 1channel for copying file(SSD、SD) and firmware upgrade | ||
| 1 channel for copying SSD file(only for connecting to computer USB) | ||
| USB3.0 | NULL | |
| 2G/3G/4G | optional | |
| WIFI | optional | |
| WIFI hotspot/AP | optional | |
| Optional,internal or external GPS/GLONASS module, coordinate/speed can be encoded in video stream and uploaded to server by wireless communication | ||
| Available | nine axis sensor | |
| Windows client | Available | |
| iOS client | Available | |
| Web portal | Available | |
| Input | 10~32V | |
| Output | 12V@3.5A | |
| Max Power Consumption | 60W | |
| Standby Power Consumption | 100mW | |
| Operating temperature & humidity | -20～70℃/ <100% | |
| Super Capacitor | Available | |
| Clock | Built-in clock, Calendar | |
|
Are You Always Wondering...
How to get a perfect fleet management solution?
How to quickly know whether the driver drives illegally?
How to quickly provide evidence for traffic accident, theft, racketeering, etc.? ......
|
|
STONKAM® 1080P Bus DVR System can solve your worries! |

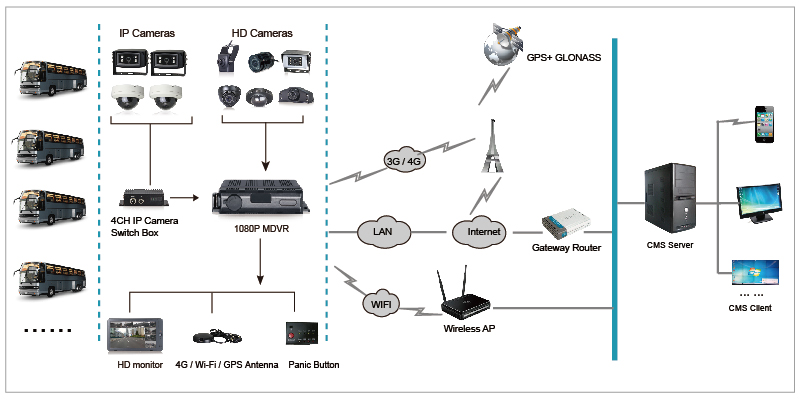

Professional 5CH bus surveillance system for effective fleet management
It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Achieve remote monitoring by bus DVR GPS tracking/3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone
Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client, iOS APP. The 1080P bus DVR supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.
|
Detailed Features of STONKAM® Bus DVR System |
IP69K Waterproof and MIL-STD 810G shockproof MDVR to protect your data well
GPS Vehicle Historical Track Playback
Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
This bus DVR camera system can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.
Set all MDVR features by touch screen monitor
Powerful Recording
This mobile DVR for buses features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.
|
Recording Quality |
Storage Capacity |
Bit Rate |
Recording Time |
|
1080P（5CH） |
2T | 4Mbps |
150 Hrs |
|
720P（5CH） |
2T |
2Mbps |
300 Hrs |
|
D1（5CH） |
2T |
1Mbps |
600 Hrs |
User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

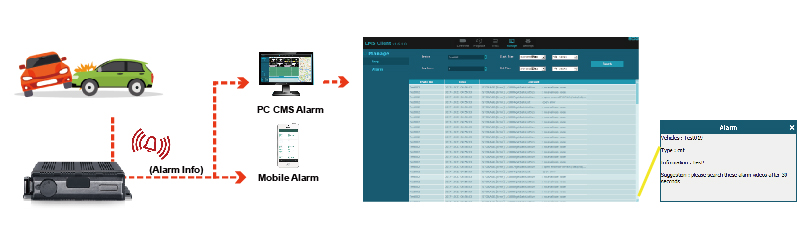

Alarm info pop up on PC / mobile APP
Easy to analyze the abnormal situation of vehicles and to track the relevant information.
Remotely download video
Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.
Dual-stream storage design for more secure data protection
The 5 channel bus DVR system adopts dual stream storage to prevent any loss of data.
Support 10s pre-recording and mandatory event videos saving
9-axis G-sensor, more sensitive to vehicle reaction.
MDVR Integrated with ADAS/DFMS/Radar Solution
Once alarm is triggered by ADAS/DFMS/Radar, ADAS/DFMS/Radar will upload the info to MDVR through CAN or Serial port. Then in MDVR, alarm recording will be triggered as event and the video will be uploaded to MDVR server automatically.
STONKAM® 5CH bus camera systems are widely used worldwide.
E.g. for Bus
Waterproof 5CH 1080P Mobile DVR for Buses:
 |
 |
 |
 |
 |
|
8P to 4P conversion cable |
Power Cable |
Alarm Cable |
CAN BUS Cable |
4G/WIFI/GPS Antenna |
 |
 |
 |
 |
|
|
Panic Button Cable |
DVR Key |
Remote Control |
Panic Button |
|
High Definition Quad-view Monitor:
 |
 |
 |
 |
 |
|
Sun Shield |
U- Support Bracket | Angle Adjustment Screws |
Center Mount Bracket |
Extention Cable |
 |
 |
|
|
|
|
Power Cable |
IR Remote Control |
|
|
|
