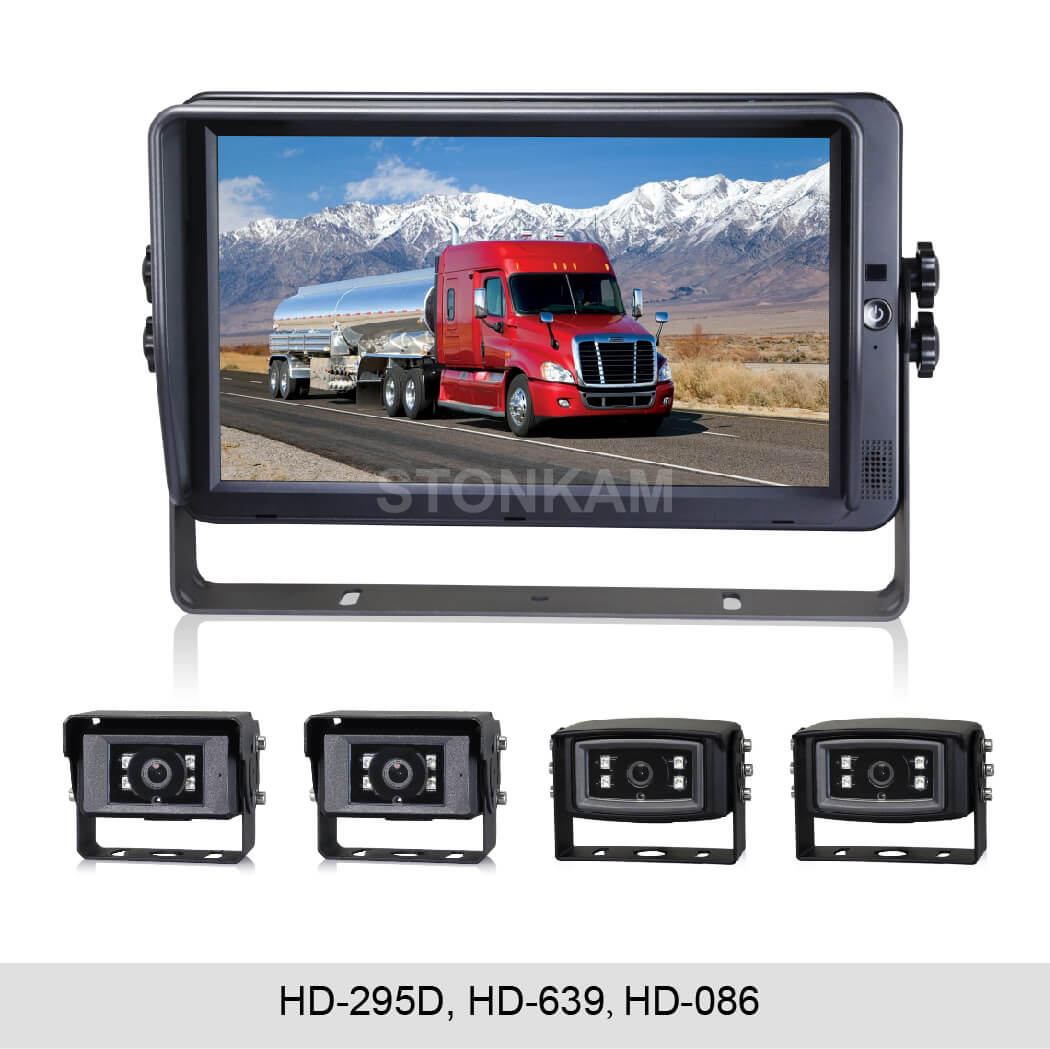

10.1 inch Touch-screen Vehicle Monitor High Definition System
(Model:HD295D, HD639, HD086)
10.1 inch Touch-screen Vehicle Monitor High Definition System
Features

STONKAM® 10.1 inch vehicle monitor supports high definition camera inputs, and features touch screen, remote control, auto scan, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details. Click to see more high definition systems.


  • Support 4 channels Max.1080P30 high definition cameras inputs
  • Support capacitive touch screen control and IR remote control
  • 9 languages available for user operation (English, Chinese, German, French, Japanese, Spanish, Italian, Russian, Dutch)
  • Reverse cursor with on-off mode switch available
  • Support AUTO DIM
  • Support AUTO SCAN, with the scan time selectable between 1-60s
  • Support 5-channel auto trigger, with the trigger delay time selectable between 1-60s
  • Multiple video formats available: PAL / NTSC / HDAHD、HDTVI、HDCVI(720P/1080P)


10.1 inch Touch-screen Vehicle Monitor High Definition System

Specification
High Definition 10.1 inch Touch Screen Vehicle LCD Monitor:
Resolution 1024 x 3(RGB) x 600
Maximum Number of Cameras 4
Audio input 4
Audio output (loudspeaker) 1W
Trigger  3 / 4 trigger wires(13/22pin)
Max. Brightness 600 cd/m²
Contrast 600:1
Minimum Operating Temperature -20ºC, RH 90%
Maximum Operating Temperature +70ºC, RH 90%
Viewing Angle Monitor U: 85/ D: 85, R/L: 85/85
Mirror Function  Yes
Monitor Diameter (mm) 267mm (W) × 159.5mm (H) × 30mm (T)
Split Screen No
Volts 10-32V
Consumption less than10W(without cameras)
Applications

STONKAM® 10.1 inch vehicle monitor can be easily applied to various vehicles and work well with our 360° Bird View Camera System

HD 10.1 inch Touch Screen Vehicle LCD Monitor System-Application


HD 10.1 inch Vehicle LCD Monitor System-Application

Accessories





Sun Shield

U- Support Bracket (Optional) Angle Adjustment Screws (Optional)

Center Mount Bracket (Optional)

Extension Cable





Power Cable
IR Remote Control

Extension Cable
